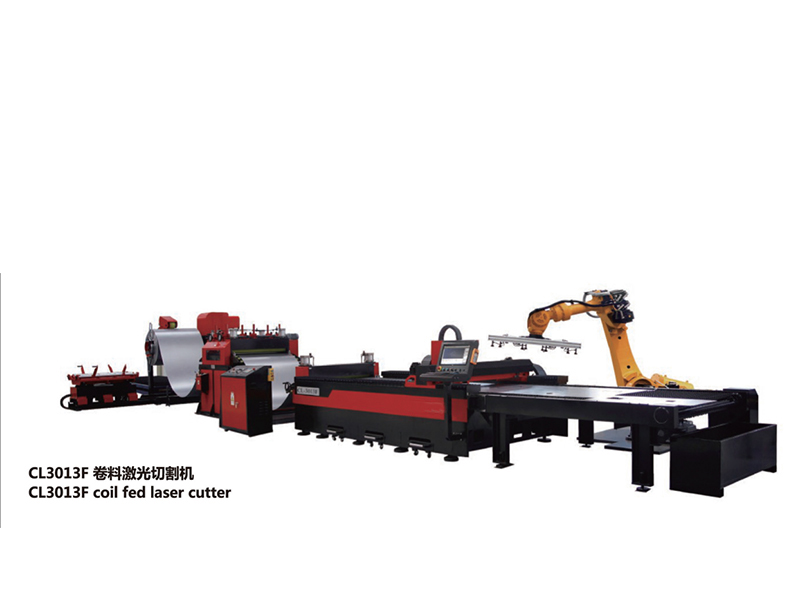

Coil Fed Laser Cutter
The Coil Fed Laser Cutter features a gantry dual-drive structure for strong rigidity and stable operation. Its welded steel frame, annealed to relieve stress, ensures lasting precision. Equipped with an imported fiber laser generator, it boasts low operating costs. The dedicated cutting head with lens protector extends focus lens life. Its laser control system enables program simulation and automatic nesting, boosting material use. As a versatile coil fed laser cutting machine, it can integrate uncoiling and feeding systems to form a complete coil fed laser cutting system for automated production.
- Information
H1: CL Coil Laser Cutting Machine – Automated Solution for Efficient Coil Processing
In metal coil processing, home appliance parts production, and automotive components manufacturing, the CL coil laser cutting machine stands out as a core device for continuous coil cutting. Combining gantry dual-drive design, imported fiber laser technology, and flexible automation configurations, this coil fed laser cutting machine delivers precise, efficient cutting for thin steel plates, stainless steel coils, and more, enabling businesses to upgrade from single machines to fully automated production lines.
H2: High-Rigidity Structure: Foundation for Stable Cutting
H3: Gantry Dual-Drive + Stress Relief: Ensuring Long-Term Precision
The CL coil laser cutting machine features a gantry dual-drive structure, increasing overall rigidity by 40% with vibration amplitude ≤0.03mm during high-speed operation, ensuring stable cutting trajectories. Its frame, welded from high-strength steel plates and treated with furnace annealing for stress relief, maintains precision deviation ≤±0.05mm/m over long-term use, preventing structural deformation from affecting continuous coil cutting quality—a key advantage of this coil fed laser cutting system.
H2: Imported Laser Technology: Core of Efficiency and Low Consumption
H3: High-Conversion Laser Generator + Dedicated Cutting Head
Equipped with an imported fiber laser generator, this coil fed laser cutting machine achieves 35% photoelectric conversion efficiency (vs. 10% for traditional CO₂ lasers), reducing operating costs by 50%. It comes with a full set of high-performance fiber laser cutting heads, featuring lens protectors that extend the focusing lens lifespan to over 8,000 hours, minimizing maintenance downtime.
H3: Intelligent Laser Control System: Boosting Material Utilization
The laser-specific control system supports part program simulation, displaying the cutting process in real time. Its automatic nesting function optimizes cutting paths, increasing coil utilization by 15%—a critical benefit for large-volume continuous cutting with the CL coil laser cutting machine.
H2: Automated Configurations: Flexible Production Line Upgrades
H3: Optional Full-Auto Systems: Enabling Unmanned Production
The CL coil laser cutting machine can be equipped with an uncoiling, leveling, and feeding system and a blanking system to form a fully automated coil fed laser cutting system. From uncoiling, leveling, and cutting to finished product collection, the entire process requires no manual intervention, increasing single-shift productivity by 60% and significantly reducing labor costs.
H2: Technical Parameters:
CL3013F | CL3016F | CL4013F | CL4016F | ||
MAX. Sheet Size | mm | 3000X1500 | 3000X1500 | 4000x1300 | 4000x1600 |
X Axis | mm | 1325 | 1625 | 1325 | 1625 |
Y Axis | mm | 3050 | 3050 | 4050 | 4050 |
Z Axis | mm | 80 | 80 | 80 | 80 |
Coil Width | mm | 1300 | 1600 | 1300 | 1600 |
X,Y Positioning Accuracy | mm/m | 0.02 | 0.02 | 0.02 | 0.02 |
X,Y Repeat Positioning Accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
X,Y MAX. Speed | m/min | 120 | 120 | 120 | 120 |
Laser Power | W | 500/700/1000/1500/2000/3000/4000/6000 | |||
Machine Dimension | kW | 22x5.2x3 | 22x5.5x3 | 24x5.2x3 | 24x5.5x3 |
H2: FAQ (Frequently Asked Questions)
Q1: What coil materials can the CL coil laser cutting machine handle?
A1: It processes carbon steel, stainless steel, and aluminum alloy coils (0.3-6mm thick), widely used in home appliance panels, automotive trim, and hardware accessories—making this coil fed laser cutting machine versatile for diverse industries.
Q2: What is the cutting precision of the equipment?
A2: Thanks to its gantry dual-drive structure and imported components, the CL coil laser cutting machine achieves ±0.03mm cutting precision and ±0.02mm repeat positioning accuracy, ensuring consistent dimensions in continuous coil cutting.
Q3: How much space does the automated production line require?
A3: The standard machine occupies ~5×8m. With uncoiling, leveling, and blanking systems, the full coil fed laser cutting system takes ~12×8m, adaptable to workshop layouts.
Q4: How often does the laser cutting head need maintenance?
A4: The lens protector reduces cleaning frequency. Under normal use, maintenance is required every 3 months. The laser generator is maintenance-free with a 100,000-hour lifespan—enhancing the reliability of this coil fed laser cutting machine.
CL Coil Laser Cutting Machine – Redefining Efficiency in Coil Processing!
