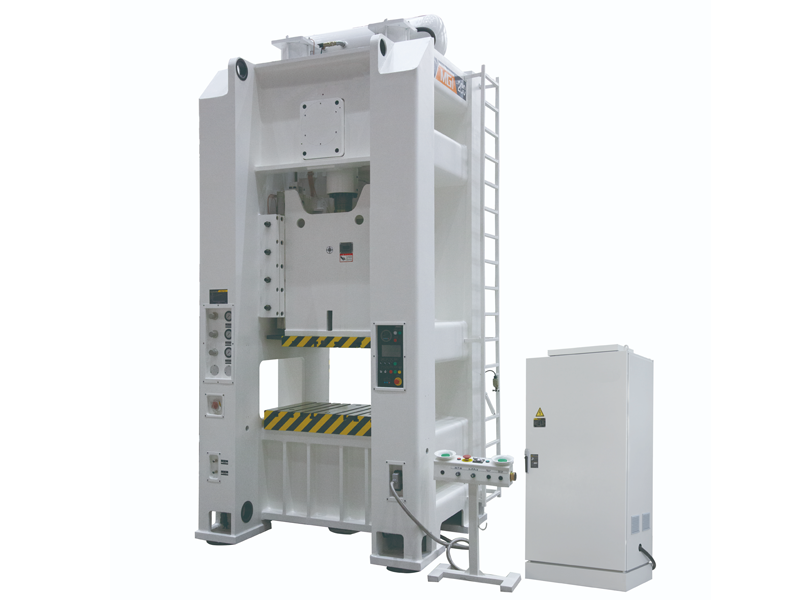

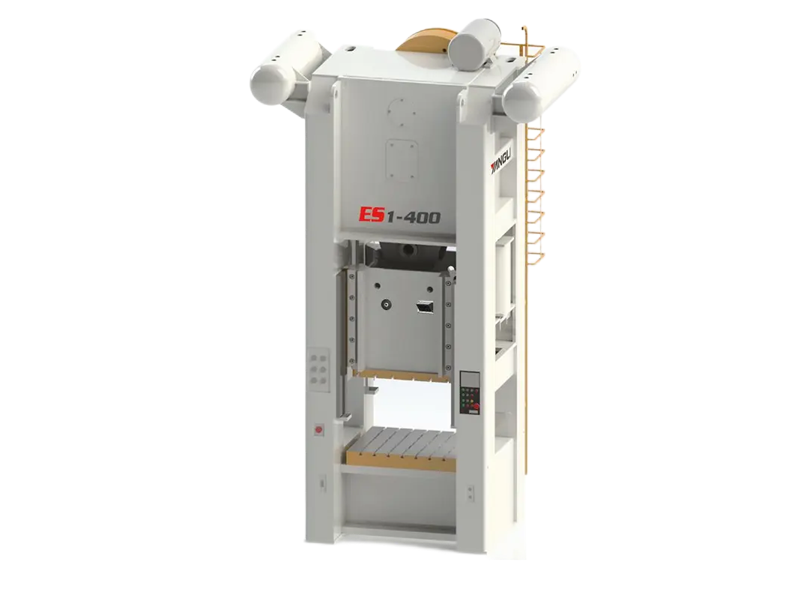

Gantry Type Single Point Press
The MG1 series gantry single-point presses, also recognized as high-performance h frame press, use all-steel welded frames optimized via 3D finite element analysis, achieving 60% higher rigidity than open-type models. This gantry press reduces angular deformation and vibration during stamping. The closed structure with eight-sided high-precision guide rails (JIS Class 1) ensures slider parallelism ≤0.02mm/m, extending die life by over 30%. Ideal for automotive body panels, precision electronics, and other complex workpiece forming requiring superior accuracy and stability, this h frame press for sale meets diverse industrial demands.
- Information
H1: Gantry Single Point Press | H Frame Press for Sale - More precision and Sturdy stamping solutions
The MG1 series gantry single-point presses, also recognized as high-performance h frame press, use all-steel welded frames optimized via 3D finite element analysis, achieving 60% higher rigidity than open-type models. This gantry press reduces angular deformation and vibration during stamping. The closed structure with eight-sided high-precision guide rails (JIS Class 1) ensures slider parallelism ≤0.02mm/m, extending die life by over 30%. Ideal for automotive body panels, precision electronics, and other complex workpiece forming requiring superior accuracy and stability, this h frame press for sale meets diverse industrial demands.
H2: Features of Gantry Single Point Press
H3: Gantry frame structure, anti-eccentric load capacity increased by 150%
The gantry press adopts a fully enclosed gantry-style body design, a core feature of the h frame press, with a symmetrical four-column support structure. Its lateral rigidity strength reaches 5000kN/m², enabling it to withstand extreme eccentric load conditions (such as asymmetric punching and deep drawing forming), thus completely solving the body deformation issue of open-style single-point presses. As a reliable h frame press for sale, this structure ensures long-term stable performance.
H3: Customize key parameters，meeting diverse production needs
Each model of the XMG1 series gantry single-point presses, functioning as an advanced h frame press, features customizable core technical parameters, enabling precise adaptation to diverse production requirements through flexible adjustments of key indicators such as slide stroke and die height. This versatility makes it an ideal choice for buyers seeking an h frame press for sale.
H3: Single-point high-precision drive, repeat positioning error ≤±0.01mm.
Equipped with Swiss Schneeberger roller guides, the vertical motion trajectory accuracy of the slider is improved to ± 0.005mm, suitable for micro level machining scenarios such as micro connectors and precision electronic components on this gantry press.
H3: Intelligent energy-saving system, comprehensive energy consumption reduced by 40%.
• Main drive: Siemens permanent magnet synchronous motor (IE5 energy efficiency class) for this h frame press
• Transmission system: Dry clutch + self-lubricating gearbox, extending maintenance intervals by 300%
• Control module: 10-inch touchscreen with 200 preset process parameter templates for the gantry press
Features:
l JIS Class 1 precision standard
l Dry friction clutches transmission system
l 8-sided extended guide rails for enhanced stability in this h frame press
l Hydraulic overload protection system
l Digital display electric die adjustment
l Balance cylinder for lifting stability
l Imported dual solenoid valves
l Grease-based electric lubrication system
l Oil circulation lubrication (II) for critical components
l Manual oil lubrication for balance cylinder
l Integrated control panel with electronic cam and touchscreen
l International-standard PLC control systeml CE-certified contactors and buttons
l 1x air blowing device
Optional: Wet clutch, air cushion, light curtain, NC feeder, inverter motor, slide knockout, safety door – all available for this h frame press for sale
H2: Gantry Single-Point Press vs. Open-Type Single-Point Press
H3: Structural Stability Comparison
l Gantry model (h frame press): Fully enclosed frame, lateral force resistance strength ≥4500kN/m²
l Open-type model: C-shaped open structure, causes table tilt when lateral force exceeds 800kN
H3: Processing Precision Differences
l Gantry single-point type (h frame press): Laser-calibrated guide rails + temperature compensation system, precision fluctuation remains below 0.02mm after 8 consecutive hours of operation
l Open-type single-point type: A 5℃ change in ambient temperature causes precision deviation ≥0.1mm
H3: Large Mold Adaptability
Gantry press comes with a standard 1.4m×2m extra-large worktable, supporting quick changeover of 10-ton-class molds; open-type model max mold weight limited to 3 tons. This h frame press for sale excels in heavy-duty applications.
H2: Industrial Application and Technical Parameter
H3: Typical Application Scenarios
l Automotive industry: High strength bolt cold heading, precision forming of gearbox gears on this gantry press
l Electronic manufacturing: Type-C interface stamping, micro hole processing of heat dissipation fins using the h frame press
l Military industry: High precision forming of titanium alloy connectors with this h frame press for sale
H3: Parameters
插入表格
H2: FAQ
Q1: Does equipment installation require a special foundation?
A1: Equipped with an active shock absorption platform, a regular concrete floor (with a strength of C30 or above) can meet the installation requirements for this gantry press and h frame press.
Q2：Does it support automated production lines?
A2：Optional servo feeding system and robot integrated interface to achieve full process automation production and meet the requirements of Industry 4.0 with this h frame press for sale.
Q3：What are the unique advantages of MG1 compared to similar products?
A：Industry leading eight sided guide rail technology, dynamic balance compensation patents, and modular design support rapid mold replacement and customized function expansion for this gantry press as an h frame press.
