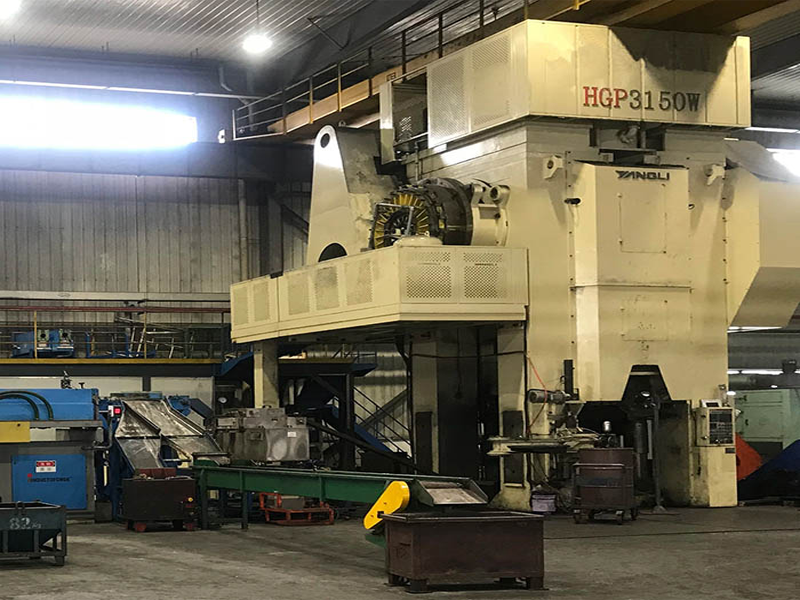

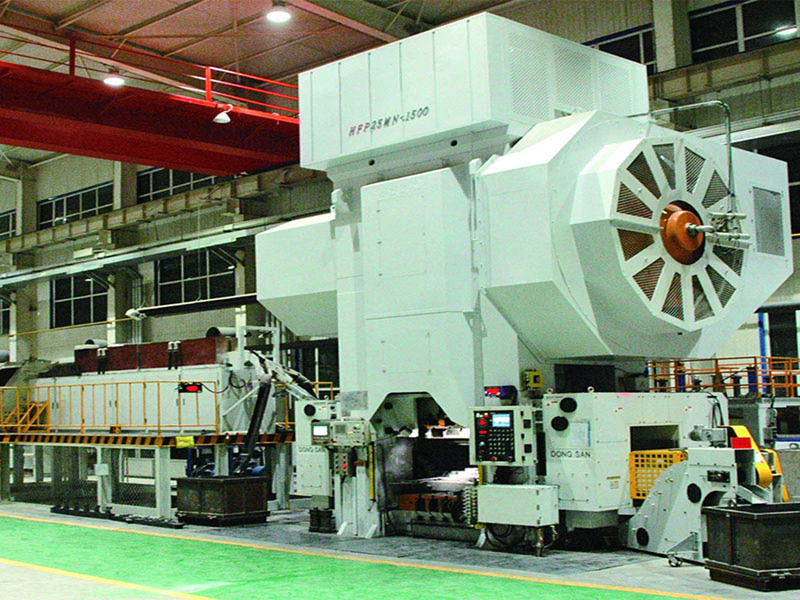

Hot Die Forging Press
The HOT DIE FORGING PRESS offers 50-100 strokes/min, minimizing die contact time for extended die life. Its large-inertia flywheel delivers high energy, ideal for hot forging and extrusion, with HGP models featuring secondary gearing for even more power. The modular frame, hydraulically pre-tensioned with high-strength tie-rods, ensures easy disassembly. Wide-body twin-point links and extended guides enhance off-center load resistance. Side windows enable automated feeding, while "X"-type guides compensate for thermal expansion. A cast steel slide and hydraulic motor height adjustment ensure precision. The floating pad clutch/brake offers reliable, low-noise operation with forced brake cooling for high-speed single strokes. This hot forging press machine integrates smart monitoring and a touchscreen for optimized performance in automated forging lines.
- Information
H1: Industrial-Grade Hot Die Forging Press - Maximize Output & Die Life
Need high-volume, precision hot forging with exceptional die longevity? Our advanced Hot Die Forging Press delivers relentless performance. With high-speed operation (50-100 strokes/min) and superior energy transfer, it stands as the premier forge press for sale for cost-effective mass production of complex components.
H2: Engineered for High-Speed, High-Yield Hot Forging
H3: Unmatched Speed & Die Protection
Achieve 50-100 strokes per minute to significantly boost throughput.
Minimized die contact time reduces temperature rise, dramatically extending die life—critical for any hot forging press machine.
Ideal for high-volume hot forging of automotive parts, aerospace components, tools, and hardware.
H3: Massive Energy Delivery & Robust Construction
Large-inertia flywheel stores high output energy, essential for tough hot forging and extrusion.
HGP Model: Features secondary gearing for even higher energy than HFP models, perfect for demanding forging press tasks.
Modular Frame Design: High-strength tie-rods with hydraulic pre-tensioning ensure rigidity while easing disassembly. Welded steel columns/crossheads (stress-relieved) and cast steel base deliver stability.
Widened Bed: Enhances versatility for diverse layouts and larger dies in your hot forging press setup.
H2: Precision & Stability Under Extreme Conditions
H3: Superior Guidance & Rigidity
Wide-Body Twin-Point Rods & Extended Guideways: Resist off-center loads for reliable multi-station forging.
"X"-Type Guideway: Compensates for thermal expansion, maintaining precision in continuous high-temperature hot forging press machine operation.
Cast Steel Slide: Delivers rigidity for consistent part quality.
H3: Optimized Drive & Control Systems
Floating Pad Clutch/Brake: Simple, reliable design with easy maintenance for your forging press.
Brake Forced Cooling: Reduces temperature rise for high-speed single-stroke reliability.
Hydraulic Motor Height Adjustment: Enables quick, precise shut height setting.
H2: Advanced Automation & Process Control
H3: Integrated Monitoring & Smart Operation
Comprehensive Control System: Monitors air pressure, temperature, lubrication, and more for your hot forging press.
Touchscreen Interface: Adjusts parameters to optimize hot forging press machine performance.
Side Access Windows: Enable lateral feeding and robotic integration for automated cells.
H2: Enhanced Productivity & Safety Options
Hydraulic Pre-Tension Nut Release: Quickly resolves slide lock-up, minimizing downtime.
Explore configurations tailored to your hot forging press machine needs.
H2: Why Invest in Our Hot Forging Press Technology?
Blistering Speed: 50-100 SPM maximizes output from your forging press.
Superior Die Economy: Reduced contact time extends die life.
Massive Energy: Flywheel & HGP gearing ensure consistent forming power.
Rigidity & Accuracy: Modular frame and X-guides deliver precision.
Automation-Ready: Side windows enable robotic integration.
Robust Design: Easy maintenance and forced cooling.
Intelligent Control: Real-time monitoring for your hot forging press.
Competitive Value: Optimize forging machine price to performance for long-term ROI.
H2：Press Specification
HFP 630S | HGP 630S | HFP 800S | HGP 800S | HFP 1000S | HGP 1000S | HFP 1350S | HGP 1350S | |||
Nominal Force | kN | 6300 | 8000 | 10000 | 13500 | |||||
Ram Stroke | mm | 220 | 240 | 250 | 270 | |||||
SPM | min⁻ | 100 | 90 | 100 | 100 | 100 | 90 | 95 | 90 | |
MAX Die Height | mm | 650 | 800 | 750 | 750 | 800 | 1000 | 900 | 1000 | |
Shut Height Adjustment | mm | 10 | 10 | 10 | 15 | |||||
Bolster Area (Lower Bolster) | L·R | mm | 800 | 900 | 1000 | 1100 | ||||
F·B | mm | 970 | 1040 | 1120 | 1300 | |||||
Slide Area (Upper Plate) | L·R | mm | 780 | 880 | 980 | 1080 | ||||
F·B | mm | 750 | 840 | 930 | 1050 | |||||
Upper Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. | ||||
Pressure | KN | 40 | 40 | 50 | 80 | |||||
Stroke | mm | 30 | 30 | 30 | 30 | |||||
Lower Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. | ||||
Pressure | KN | 2-50 | 2-50 | 3-50 | 3-50 | |||||
Stroke | mm | 30 | 30 | 30 | 50 | |||||
Main Motor Power | kW | 55 | 75 | 75 | 90 | 90 | 110 | |||
Specification | HFP 1600S | HGP 1600S | HFP 2000S | HGP 2000S | HFP 2500S | HGP 2500S | HFP 1350S | HGP 1350S | ||
Nominal Force | kN | 16000 | 20000 | 25000 | 13500 | |||||
Ram Stroke | mm | 280 | 300 | 320 | 270 | |||||
SPM | min⁻ | 90 | 85 | 85 | 80 | 80 | 75 | 95 | 90 | |
MAX Die Height | mm | 1000 | 1100 | 1100 | 1200 | 1200 | 1300 | 900 | 1000 | |
Shut Height Adjustment | mm | 15 | 15 | 15 | 15 | |||||
Bolster Area (Lower Bolster) | L·R | mm | 1200 | 1350 | 1500 | 1100 | ||||
F·B | mm | 1400 | 1530 | 1700 | 1300 | |||||
Slide Area (Upper Plate) | L·R | mm | 1180 | 1320 | 1460 | 1080 | ||||
F·B | mm | 1140 | 1260 | 1380 | 1050 | |||||
Upper Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. | ||||
Pressure | KN | 80 | 100 | 150 | 80 | |||||
Stroke | mm | 30 | 40 | 50 | 30 | |||||
Lower Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. | ||||
Pressure | KN | 3-50 | 3-100 | 3-100 | 3-50 | |||||
Stroke | mm | 50 | 50 | 50 | 50 | |||||
Main Motor Power | kW | 110 | 160 | 160 | 110 | |||||
Specification | HGP 3150S | HGP 4000S | HGP5000S | HGP 6300S | ||
Nominal Force | kN | 31500 | 40000 | 25000 | 63000 | |
Ram Stroke | mm | 340 | 400 | 320 | 450 | |
SPM | min⁻ | 60 | 55 | 50 | 50 | |
MAX Die Height | mm | 1400 | 1400 | 1500 | 1600 | |
Shut Height Adjustment | mm | 15 | 15 | 15 | 15 | |
Bolster Area (Lower Bolster) | L·R | mm | 1700 | 1800 | 1850 | 1950 |
F·B | mm | 1950 | 2150 | 2250 | 2350 | |
Slide Area (Upper Plate) | L·R | mm | 1660 | 1760 | 1800 | 1900 |
F·B | mm | 1670 | 1810 | 1975 | 2025 | |
Upper Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. |
Pressure | KN | 150 | 180 | 200 | 300 | |
Stroke | mm | 50 | 50 | 50 | 50 | |
Lower Ejector Device | Type |
| Hydr. | Hydr. | Hydr. | Hydr. |
Pressure | KN | 3-100 | 3-150 | 4-150 | 4-200 | |
Stroke | mm | 80 | 80 | 80 | 80 | |
Main Motor Power | kW | 200 | 250 | 375 | 375 | |
H2: Frequently Asked Questions (FAQ)
Q1: What parts suit this hot die forging press?
A1: This hot forging press excels in high-volume, precision parts—automotive crankshafts, gears, aerospace fittings, etc. It’s ideal for consistent quality and output.
Q2: How does high stroke rate benefit production?
A2: 50-100 SPM boosts parts per hour. Shorter die contact time lowers temperature, extending die life and reducing costs for your forging press.
Q3: What’s HGP model’s advantage?
A3: Secondary gearing increases torque for tougher hot forging press machine tasks, potentially allowing smaller tonnage presses for the same job.
Q4: Why is "X"-Type guideway important?
A4: It compensates for thermal expansion, maintaining slide guidance accuracy in continuous hot forging press operation and ensuring part stability.
Q5: How does brake cooling enable high-speed stroking?
A5: Forced cooling removes heat from the brake, preventing fade and ensuring reliable stops—essential for automated forging press production.
Q6: Can this press integrate into automated lines?
A6: Yes. Side windows enable lateral feeding, making it easy to pair with robots for multi-station cells. This hot forging press machine is a modern forging cornerstone.
Q7: What influences forging machine price?
A7: Tonnage, model (HFP/HGP), bed size, features, options, and controls. Though an investment, this hot forging press delivers long-term ROI via speed, durability, and automation. Contact for a quote.
