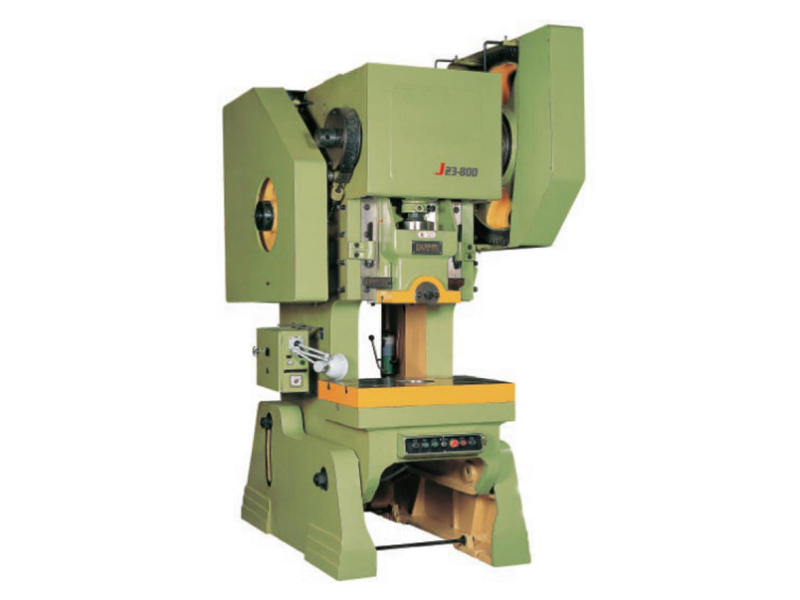

D Type Stamping Press With Adjustable Stroke
The D Type Stamping Press With Adjustable Stroke, a robust mechanical stamping press, features a horizontal crankshaft for stable performance. Equipped with a crankshaft-mounted stroke adjuster, it adapts to diverse tasks. Its rigid key-type clutch ensures smooth operation, while manual die adjustment with a clear scale simplifies setup. As a versatile sheet metal stamping machine, this mechanical stamping press excels in precise, flexible metal forming, ideal for varied production needs.
- Information
H1: D Type Stamping Press With Adjustable Stroke – A Versatile Mechanical Stamping Press for Precision Work
In metal fabrication and hardware production, the D Type Stamping Press With Adjustable Stroke shines as a reliable mechanical stamping press. Its robust design and flexible features make it a top choice for sheet metal pressing tasks, from small-batch prototyping to high-volume production. As a versatile sheet metal stamping machine, it balances precision and efficiency, catering to workshops of all sizes.
H2: Sturdy Crankshaft Design – The Heart of This Mechanical Stamping Press
H3: Horizontal Layout for Stable Sheet Metal Pressing
The D Type Stamping Press With Adjustable Stroke features a horizontal crankshaft structure, forged from high-strength alloy steel. This design ensures steady power transmission during sheet metal pressing, minimizing vibration and boosting stamping accuracy (tolerance ≤0.1mm). Ideal for materials like carbon steel, aluminum, and copper (0.2-6mm thick), this mechanical stamping press delivers consistent results, whether handling thin sheets or medium-gauge metal.
H2: Adjustable Stroke – Flexibility for Diverse Sheet Metal Stamping Needs
H3: Built-In Adjustment for Customized Tasks
A key advantage of the D Type Stamping Press With Adjustable Stroke is its crankshaft-mounted stroke adjustment device. Operators can easily tweak stroke length (5-150mm) to match workpiece requirements—from shallow embossing to deep drawing. This makes it a standout sheet metal stamping machine, as it eliminates the need for multiple presses. Whether you’re into sheet metal pressing for automotive parts or small hardware, this flexibility streamlines production.
H2: Reliable Clutch System – Ensuring Smooth Operation in This Mechanical Stamping Press
H3: Rigid Key-Type Clutch for Consistent Performance
Equipped with a rigid key-type clutch, this mechanical stamping press ensures quick, precise engagement. The clutch minimizes slippage, guaranteeing uniform force (up to 50 tons) across every stroke—critical for maintaining quality in sheet metal pressing. Its durable build reduces wear, lowering maintenance costs and keeping your sheet metal stamping machine running efficiently.
H2: User-Friendly Die Adjustment – Perfect for Small Metal Stamping Press Users
H3: Manual Tuning with Clear Scales for Easy Setup
The D Type Stamping Press With Adjustable Stroke offers manual die adjustment with a precision scale, letting operators set gaps in seconds. This feature is a boon for small metal stamping press users, as it cuts setup time by 40% when switching tasks. Whether you’re a small workshop or a large factory, this ease of use makes it a practical sheet metal stamping machine.
H2: Technical Parameters
Specification | JC23-6.3D | J23-10D | J23-16D | J23-25D | JG23-40D | JC23-63D | J23-80D | ||
Nominal Force | kN | 63 | 100 | 160 | 250 | 400 | 630 | 800 | |
Nominal Stroke | mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 | |
Slide Stroke | mm | 0-40 | 0-60 | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 | |
SPM | min-1 | 170 | 145 | 125 | 60 | 55 | 50 | 45 | |
Max. Die Height | mm | 105 | 130 | 170 | 180 | 220 | 260 | 270 | |
Die Height Adjustment | mm | 20 | 35 | 30 | 45 | 70 | 80 | 80 | |
Between Slide Center and Frame | mm | 110 | 130 | 170 | 210 | 260 | 260 | 270 | |
Bolster | F-B | mm | 200 | 240 | 320 | 400 | 480 | 480 | 520 |
L-R | mm | 310 | 360 | 480 | 600 | 710 | 710 | 860 | |
Bolster Opening (Up Dia.xDepthxLow Dia.) | mm | φ60 | φ120x20x φ100 | φ100 | φ120 | φ220x25x φ180 | φ200x45x φ180 | φ200x45x φ180 | |
Bolster Thickness | mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |
Bed Opening (Dia. x F-B x L-R) | mm | φ140x110x160 | φ130x90x180 | φ210x160x240 | φ180x130x260 | φ200x150x300 | φ250x200x340 | φ250x200x340 | |
Slide Area | F-B | Mm | 120 | 150 | 180 | 210 | 270 | 280 | 280 |
L-R | mm | 140 | 170 | 200 | 250 | 320 | 320 | 380 | |
Shank Hole (Dia.xDepth) | mm | φ30x55 | φ30x55 | φ40x60 | φ40x70 | φ50x70 | φ50x80 | φ60x75 | |
Max. Inclined Angle | ° | 30° | 25° | 25° | 25° | 25° | 25° | 20° | |
Between Columns | mm | 150 | 180 | 220 | 260 | 300 | 350 | 410 | |
Main Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | |
Overall Dimension | F-B | mm | 780 | 915 | 1150 | 1325 | 1600 | 1810 | 1810 |
L-R | mm | 610 | 700 | 900 | 990 | 1180 | 1350 | 1410 | |
Height Above Floor | mm | 1505 | 1690 | 1910 | 2140 | 2310 | 2640 | 2790 | |
H2: FAQ
Q1: Is this press suitable for sheet metal stamping machine beginners?
A1: Yes. Its intuitive manual adjustment and clear scales make it easy to operate, even for those new to mechanical stamping press use.
Q2: Can it handle thick materials in sheet metal pressing?
A2: Absolutely. It efficiently processes 0.2-6mm thick metals, including carbon steel and aluminum, ideal for diverse sheet metal pressing tasks.
Q3: Why choose this over other small metal stamping press models?
A3: Its adjustable stroke and rigid clutch set it apart, offering versatility that most small metal stamping press options lack—handling more tasks with one machine.
Q4: How often does the clutch need maintenance in this mechanical stamping press?
A4: Lubricate every 500 hours and inspect every 3,000 hours. The rigid key design ensures long life, typical of a durable mechanical stamping press.
D Type Stamping Press With Adjustable Stroke – A top mechanical stamping press and sheet metal stamping machine, perfect for sheet metal pressing and small metal stamping press needs. Contact us for details: [Inquiry]
The D Type Stamping Press With Adjustable Stroke blends flexibility, precision, and reliability—making it a smart investment for metal forming operations. Contact us to learn more about custom configurations: WeChat/WhatsApp: +86 18317313453
