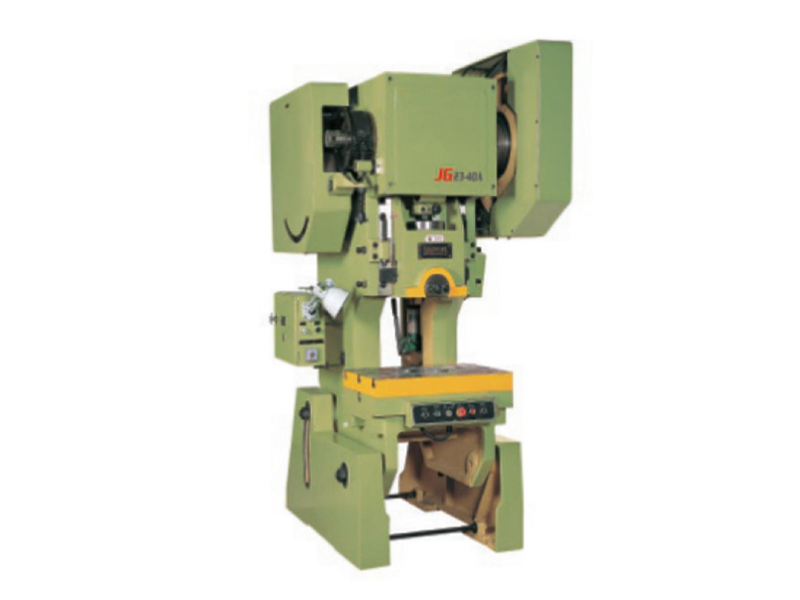

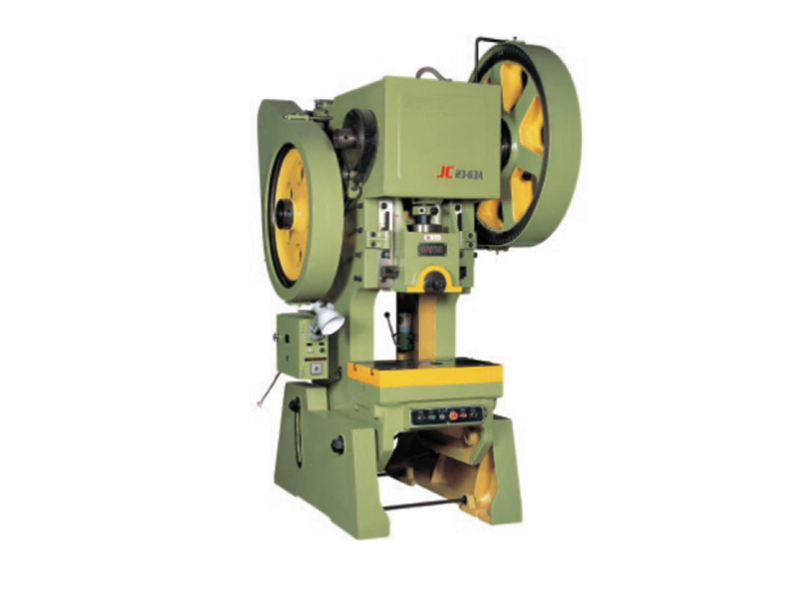

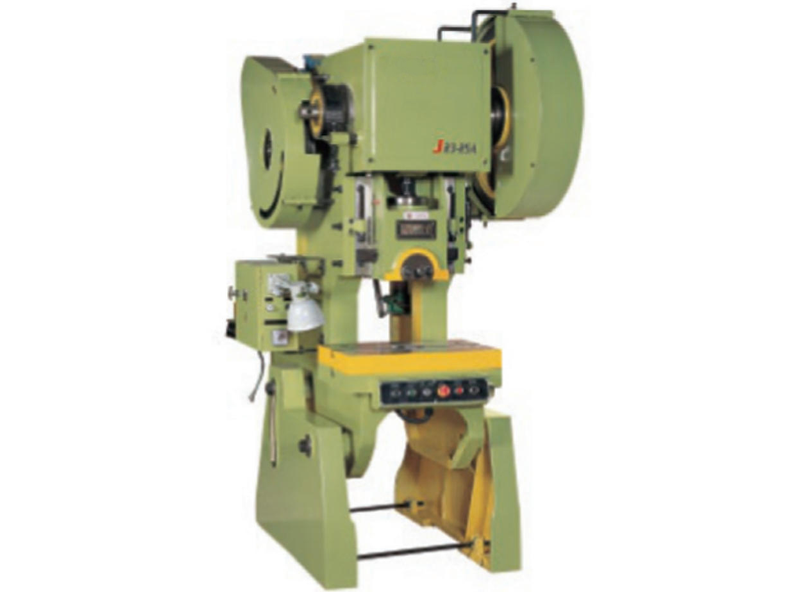

General Open Fornt Inclinable Stamping Press
The General Open Front Inclinable Stamping Press, a top metal stamping machine, features a horizontal crankshaft and rigid key-type clutch (JD23-63A/80A with dual keys). It has manual die adjustment with scales and a crank stroke adjuster. "A" models include an emergency brake (0~135° stop) and optional photoelectric protectors. Trusted by stamping press manufacturers, this metal stamping machine offers precision and safety for diverse metal processing tasks.
- Information
H1: General Open Front Inclinable Stamping Press – A High-Performance Metal Stamping Machine for Precision Fabrication
In automotive parts production, hardware manufacturing, and metal fabrication, the General Open Front Inclinable Stamping Press stands out as a versatile stamping machine. Its unique inclinable design, robust structure, and precise controls make it a top choice for businesses seeking efficiency in punching, bending, and forming metal components—rivaling the quality of leading metal stamping press models.
H2: Optimized Crankshaft Structure – The Core of This Metal Stamping Machine
H3: Horizontal Crankshaft for Stable Power Distribution
The General Open Front Inclinable Stamping Press features a horizontal crankshaft structure, ensuring smooth power transmission even at high stamping speeds (up to 350 strokes/min). This design minimizes vibration, enhancing accuracy for thin to medium metal sheets (0.2-10mm)—a key trait that sets this metal stamping machine apart from conventional options. The crankshaft, forged from high-strength steel, delivers consistent performance under heavy loads, making it a reliable metal stamping press for long-term use.
H2: Rigid Clutch System – Powering This Stamping Machine’s Efficiency
H3: Reliable Engagement for Seamless Operations
Equipped with a rigid key-type clutch, this stamping machine ensures quick, precise engagement and disengagement, reducing idle time between cycles. For heavy-duty models (JD23-63A/80A), a dual key structure handles higher torque, making them ideal for 63-80 ton stamping tasks. This clutch system minimizes wear, lowering maintenance needs—an advantage that stamping press manufacturers often highlight for durability.
H2: User-Friendly Adjustments – Simplifying Workflows for This Metal Stamping Press
H3: Manual Die Tuning with Clear Scaling
The General Open Front Inclinable Stamping Press offers manual die adjustment paired with a precision scale, letting operators set die gaps in seconds. This cuts setup time by 40% when switching between tasks, from small holes to complex shapes. Its inclinable bed (30°-45° adjustable) eases workpiece ejection, streamlining high-volume production— a feature that makes this metal stamping press a favorite in busy workshops.
H2: Enhanced Safety – Protecting Operators of This Stamping Machine
H3: Emergency Brake for Instant Control
All "A" type models of this inclinable stamping press include an emergency brake system, stopping the slider within 0°-135° instantly in emergencies. Optional photoelectric protectors add another layer of safety, meeting global standards (OSHA, CE). This focus on safety aligns with what top stamping press manufacturers prioritize for operator well-being.
H2: Technical Parameters
JC23-6.3 | JC23-10B | JC23-16B | JC23-25A | JG23-40A | JC23-63A | JD23-63A | J23-80A | JD23-80A | |||
Nominal Force | kN | 63 | 100 | 160 | 250 | 400 | 630 | 630 | 800 | 800 | |
Nominal Stroke | mm | 3 | 4 | 5 | 5 | 6 | 8 | 8 | 9 | 9 | |
Slide Stroke | mm | 35 | 60 | 70 | 80 | 120 | 120 | 120 | 130 | 130 | |
SPM | min-1 | 170 | 145 | 125 | 60 | 55 | 50 | 50 | 45 | 45 | |
Max. Die Height | mm | 110 | 130 | 170 | 180 | 220 | 270 | 270 | 290 | 290 | |
Die Height Adjustment | mm | 30 | 35 | 45 | 70 | 80 | 80 | 80 | 100 | 100 | |
Between Slide Center and Frame | mm | 110 | 130 | 170 | 210 | 260 | 260 | 260 | 270 | 300 | |
Bolster | F-B | mm | 200 | 240 | 320 | 400 | 480 | 480 | 480 | 520 | 580 |
L-R | mm | 310 | 360 | 480 | 600 | 710 | 710 | 710 | 860 | 860 | |
Bolster Opening (Up Dia.xDepthxLow Dia.) | mm | φ60 | φ120x20x φ100 | φ100 | φ120 | φ220x25x φ180 | φ200x45x φ180 | φ200x45x φ180 | φ200x45x φ180 | φ200x45x φ180 | |
Bolster Thickness | mm | 40 | 50 | 60 | 70 | 80 | 90 | 90 | 100 | 100 | |
Bed Opening (Dia. x F-B x L-R) | mm | φ140x110x160 | φ130x90x180 | φ210x160x240 | φ180x130x260 | φ200x150x300 | φ250x200x340 | φ250x200x340 | φ250x200x340 | φ280x220x380 | |
Slide Area | F-B | Mm | 120 | 150 | 180 | 210 | 270 | 280 | 280 | 280 | 280 |
L-R | mm | 140 | 170 | 200 | 250 | 320 | 320 | 320 | 380 | 380 | |
Shank Hole (Dia.xDepth) | mm | φ30x55 | φ30x55 | φ40x60 | φ40x70 | φ50x70 | φ50x80 | φ50x80 | φ60x75 | φ60x75 | |
Max. Inclined Angle | ° | 30° | 25° | 25° | 25° | 25° | 25° | 25° | 20° | 20° | |
Between Columns | mm | 150 | 180 | 220 | 260 | 300 | 350 | 350 | 410 | 410 | |
Main Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | |
Overall Dimension | F-B | mm | 780 | 915 | 1150 | 1325 | 1600 | 1810 | 1885 | 1810 | 1990 |
L-R | mm | 610 | 700 | 900 | 990 | 1180 | 1350 | 1350 | 1410 | 1410 | |
Height Above Floor | mm | 1505 | 1690 | 1910 | 2140 | 2310 | 2640 | 2670 | 2790 | 2945 | |
H2: FAQ
Q1: What materials can this metal stamping machine handle?
A1: This General Open Front Inclinable Stamping Press efficiently works with carbon steel, stainless steel, aluminum, and copper sheets (0.2-10mm thick), making it a versatile metal stamping press for diverse fabrication needs.
Q2: How often does the clutch need maintenance?
A2: The rigid key-type clutch requires lubrication every 600 operating hours. Dual key models (JD23-63A/80A) need inspection every 5,000 hours—less frequent than many stamping machine options, reducing downtime.
Q3: Why choose an inclinable design over a fixed stamping machine?
A3: The inclinable bed simplifies workpiece ejection, cutting manual handling time by 30%—a big advantage for high-volume runs, making this metal stamping press more efficient than fixed-bed alternatives.
Q4: How does it compare to other stamping press manufacturers’ models?
A4: It stands out with its dual key structure (for heavy loads) and precise die adjustment, offering better durability and setup speed than many competitors’ metal stamping press options.
General Open Front Inclinable Stamping Press – A reliable stamping machine that blends power, safety, and ease of use. Contact us to learn why it’s a top metal stamping machine for modern fabrication: WeChat/WhatsApp: +83 18317313453
