H1: PSP Gantry High-Speed Stretching Press - The Revolutionary Choice for High-Speed Deep Drawing in the Can Making Industry

In the fields of can manufacturing, food packaging, and chemical containers, the PSP Gantry High-Speed Stretching Press has become the core equipment for forming metal containers such as tea cans, wine boxes, and aerosol cans, leveraging its exceptional stability in high speed deep drawing operations and micron-level precision control. This series integrates an H-frame welded structure, eight-sided guide rail guidance, and intelligent control systems to provide a one-stop solution for deep draw transfer press applications, helping customers achieve dual improvements in production efficiency and quality with a h frame high speed press that combines rigidity and precision.

H2: High-Strength Frame Design Lays the Foundation for High-Speed Stretching

H3: H-Frame Welded Structure + Single-Point Crankshaft for Optimal Rigidity

The PSP series features an integral H-frame welded steel plate structure. The single-point press design, combined with a longitudinally placed crankshaft, increases overall rigidity by 35%, making it ideal for high speed deep drawing press operations where minimal deformation (≤0.02mm/m) is critical. This design effectively suppresses vibrations (amplitude ≤0.04mm), ensuring dimensional accuracy (≤±0.03mm) in complex deep drawing processes.

H3: Eight-Sided Zero-Clearance Needle Roller Guides for Micron-Level Precision

The slider is guided by eight-sided zero-clearance circulating needle roller guides, optimizing performance in deep draw transfer press applications. With a 50% larger contact area than traditional guides, these rails ensure precise movement (±0.01mm repeatability), making the PSP series a preferred choice for high-speed production of precision components like beverage can lids.

H2: Advanced Transmission Systems for High-Speed Efficiency

H3: Combined Pneumatic Clutch + Dual Safety Valves

Equipped with a combined dry pneumatic friction clutch (response time ≤50ms) and imported dual safety valves, the PSP press meets ISO safety standards for h frame high speed press operations. This configuration enables synchronized clutch-brake action (<0.5° error), maximizing efficiency in high-volume deep drawing processes.

H3: Intelligent Lubrication + Overload Protection

• Forced Thin Oil Lubrication System: Ensures reliable performance in high speed deep drawing press applications by reducing component wear by 40% and extending maintenance intervals;

• Hydraulic Overload Protection: Instantly detects anomalies (0.1s response time), safeguarding tooling and ensuring continuous operation in deep draw transfer press setups.

H2: Modular Configuration for Diverse Production Needs

H3: Dual-Mode Mold Adjustment System

• 45-ton models: Manual adjustment with 0.1mm precision;

• 63+ ton models: Electric adjustment (0.05mm accuracy), ideal for rapid changeovers in h frame high speed press environments.

H3: Automated Line Integration

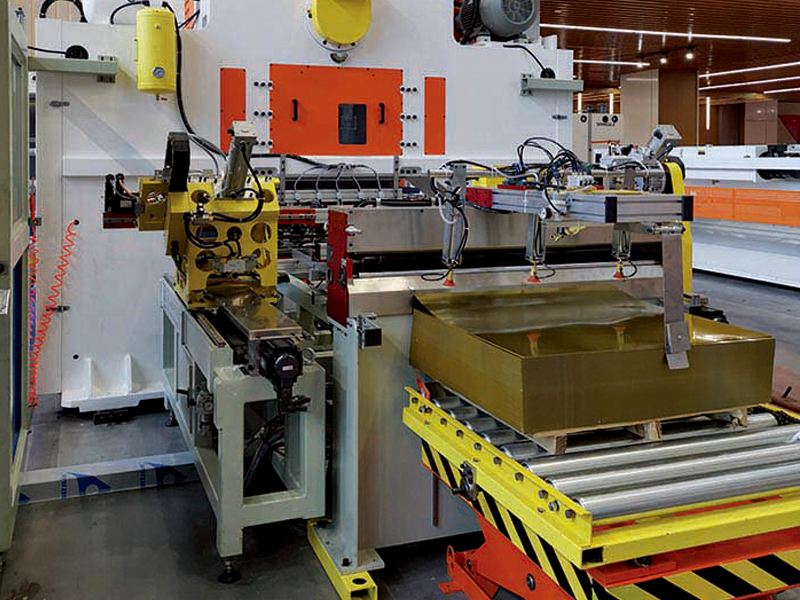

Seamlessly integrates with CNC feeding systems to form fully automated deep draw transfer press lines, boosting productivity by 50% compared to traditional setups. This makes the PSP series perfect for mass-producing items like aerosol cans and milk powder lids.

H2: Technical Parameters

FAQ

Q1: What differentiates the PSP series in high-speed deep drawing?

A: Its H-frame design, eight-sided guides, and precision control system enable stable high speed deep drawing press operations with minimal vibration and exceptional accuracy.

Q2: Is the PSP press suitable for transfer line applications?

A: Absolutely. The PSP’s robust construction and fast cycle times make it ideal for deep draw transfer press configurations, supporting seamless multi-stage forming.

Q3: How does the H-frame enhance performance?

A: The H-frame design provides superior rigidity, critical for maintaining precision in h frame high speed press operations over extended production runs.

Q4: Can the PSP handle thin-gauge materials?

A: Yes. With adjustable stroke control and precise pressure regulation, the PSP excels in high speed deep drawing press applications involving 0.5–2mm metal sheets.

Q5: What automation options are available?

A: The PSP integrates with CNC feeding, robotic handling, and monitoring systems to create fully automated deep draw transfer press lines.

PSP Gantry High-Speed Stretching Press - Redefining High-Speed Deep Drawing Excellence!
