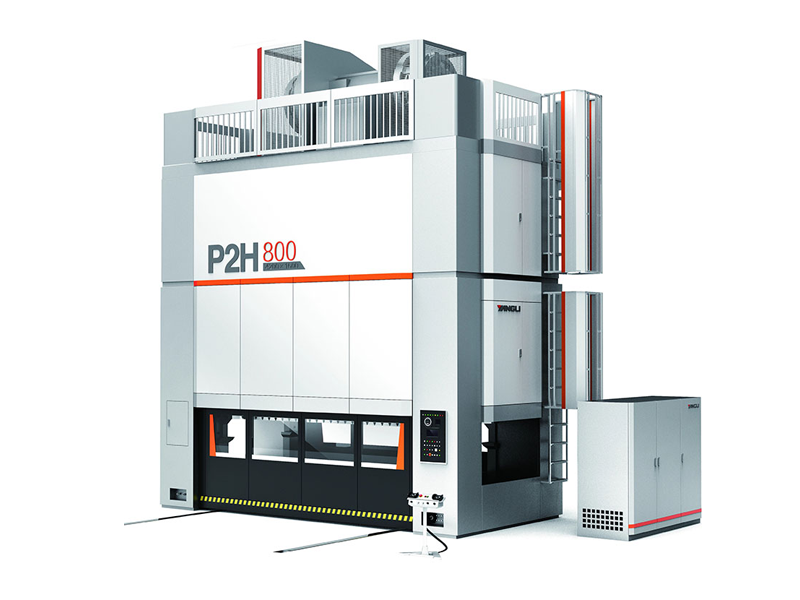

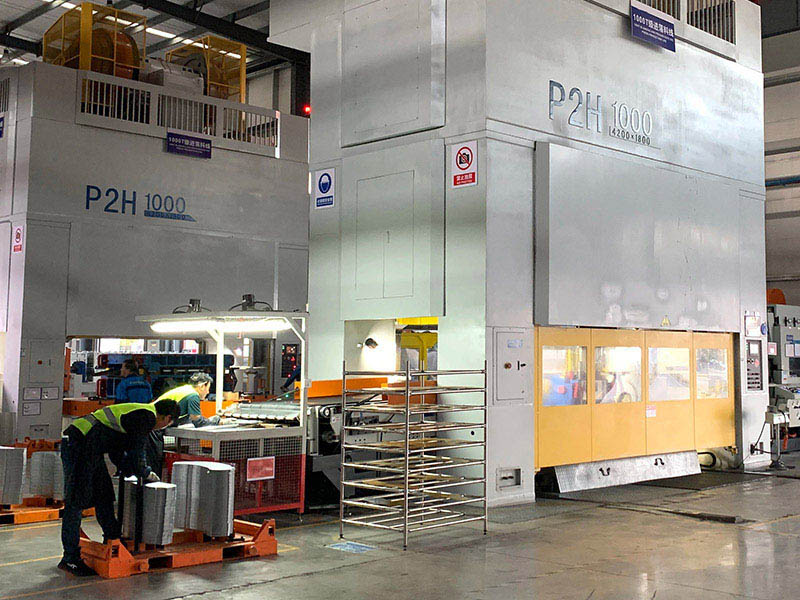

Straightside Two Point High Speed Press
The P2H Straightside Two Point High Speed Press features a modular frame with tension bolts and cast steel construction for exceptional strength and rigidity. Its reinforced switched reluctance motor delivers high overload capacity, large starting torque, and low inrush current. The transmission system includes overload protection, while X-type extended guides ensure precise alignment and resistance to eccentric loads. A forced automatic lubrication system with progressive distribution monitors lubricant flow. Optional servo motor direct drive enhances flexibility. This high speed press machine combines robust design with advanced technology for efficient, reliable performance in high-volume stamping applications.
- Information
H1: P2H Straightside Two-Point High-Speed Precision Press - The Benchmark for High-Speed Stamping and Precision Forming
In the automotive sheet metal processing, motor stator/rotor manufacturing, and precision electronics industries, the P2H Straightside Two-Point High-Speed Precision Press stands as the core equipment for multi-station progressive die stamping, renowned for its exceptional high-speed stability and micron-level precision control. This series integrates split-welded structure, multi-link drive technology, and intelligent control systems to provide a one-stop solution for high-speed blanking, shallow drawing, and precision forming processes, enabling customers to achieve efficient production and quality upgrades with a high speed press that combines power and accuracy.
H2: High-Strength Frame Design Lays the Foundation for High-Speed Precision Stamping
H3: Split-Welded Structure + Double Pre-Tensioning for Industry-Leading Rigidity
The P2H series features a split box-type welded structure pre-tensioned by high-strength tie rods with double nominal force, increasing overall rigidity by 40% and controlling deformation within 0.01mm/m. This design effectively suppresses vibrations (amplitude ≤0.03mm) during high-speed operations, making it a reliable high speed press machine for continuous stamping with workpiece dimensional deviation ≤±0.02mm.
H3: Eight-Face High-Speed Sliding Guide Rails for Micron-Level Guidance Precision
The slider is guided by eight-face high-speed sliding guide rails, with a contact area 60% larger than traditional four-face guides. This design ensures precise movement even at maximum speeds, making the P2H series a top choice for applications requiring a high speed power press with exceptional repeatability (bottom dead center accuracy ±0.008mm).
H2: Innovative Transmission and Drive Systems Break Through High-Speed Stamping Efficiency Bottlenecks
H3: Crankshaft Multi-Point Support + Multi-Link Mechanism for Significantly Enhanced Eccentric Load Resistance
Featuring a crankshaft multi-point support structure with 30% increased connecting rod span, the P2H series offers 50% higher eccentric load resistance than traditional presses. The multi-link mechanism optimizes slider motion for uniform speed during the working stroke (fluctuations ≤±2%), maximizing the efficiency of this high speed press in high-volume production environments.
H3: Variable-Frequency Speed-Regulated Main Motor + Intelligent Control System
The main motor’s variable-frequency speed-regulation system (0-1200rpm) expands the machine’s working range by 50%, allowing seamless adjustments for different stamping requirements. Combined with electronic cam control, this high speed power press delivers precise, programmable motion control for complex stamping tasks.
H2: Intelligent Lubrication and Safety Protection Build an Efficient Production System
H3: Forced Thin-Oil Circulation Lubrication + Automatic Alarm Device
The forced thin-oil circulation lubrication system ensures continuous, reliable operation of this high speed press machine by reducing component wear by 50% and extending maintenance intervals to 6 months. The system monitors oil path patency in real-time, triggering alarms to prevent downtime.
H3: Full-Process Safety Protection Design
Overload Protection Device: Instantly detects anomalies and shuts down the high speed power press within 0.05 seconds to protect tooling and operators.
Imported Safety Dual Solenoid Valves: Meet ISO 13849-1 standards with ≤20ms response time for emergency braking.
H2: Modular Configuration for Diverse Production Scenarios
H3: Two Models Tailored to Different Processes
Model I: Achieves up to 800 strokes/min, ideal for high-speed blanking and forming of automotive components, making it a premier high speed press for the automotive industry.
Model II: Optimized for low-speed torque, excels in precision operations like stator/rotor lamination (perpendicularity error ≤0.05mm).
H3: Optional Configurations to Boost Production Efficiency
Mobile Worktable: Reduces die change time to ≤5 minutes, enhancing the flexibility of this high speed press machine for small-batch, multi-variety production.
Industrial IoT Interface: Enables real-time monitoring of performance metrics like OEE and stamping frequency, transforming the high speed power press into a smart factory asset.
H2: Technical Parameters and Selection Guide
P2H-200 P2HL-200 | P2H-250 P2HL-250 | P2H-300 P2HL-300 | P2H-300 | P2H-400 P2HL-400 | P2H-400 | P2H-500 P2HL-500 | |||
I | I | I | II | I | II | I | |||
Nominal Force | kN | 2000 | 2500 | 3000 | 3000 | 4000 | 4000 | 5000 | |
Nominal Stroke | mm | 6.5 | 6.5 | 6.5 | 3 | 6.5 | 3.5 | 6.5 | |
Slide Stroke | mm | 250 | 250 | 250 | 30 | 250 | 50 | 250 | |
SPM | min⁻1 | 20-60 | 20-60 | 20-60 | 120-220 | 20-50 | 100-200 | 20-50 | |
MAX. Die Height | mm | 500 | 600 | 650 | 550 | 700 | 550 | 700 | |
Die Height Adjustment | mm | 120 | 160 | 200 | 50 | 200 | 100 | 220 | |
Bolster Area (Lower Bolster) | LxW | mm | 1800x900 | 2000x1000 | 2200x1200 | 2200x1200 | 2800x1400 | 2800x1400 | 3000x1400 |
2000x1000 | 2400x1000 | 2600x1200 | 2600x1200 | 3200x1500 | 3200x1500 | 3200x1500 | |||
2200x1000 | 2800x1200 | 3000x1400 | 3000x1400 | 3600x1600 | 3600x1600 | 3600x1600 | |||
Slide Area (Upper Plate) | LxW | mm | 1800x900 | 2000x1000 | 2200x1200 | 2200x1200 | 2800x1400 | 2800x1400 | 3000x1400 |
2000x1000 | 2400x1000 | 2600x1200 | 2600x1200 | 3200x1500 | 3200x1500 | 3200x1500 | |||
2200x1000 | 2800x1200 | 3000x1400 | 3000x1400 | 3600x1600 | 3600x1600 | 3000x1600 | |||
Main Motor Power | kW | 30 | 37 | 55 | 55 | 75 | 75 | 90 | |
Height Above Floor | mm | 4300 | 4800 | 5200 | 4800 | 6300 | 5400 | 6800 | |
Direction of Moving Bolster | mm | / | / | / | / | / | / | / | |
Specification | P2H-500 | P2H-630 P2HL-630 | P2H-630 | P2H-800 P2HL-800 | P2H-800 | P2H-1000 P2HL-1000 | P2H-1000 | ||
II | I | II | I | II | I | II | |||
Nominal Force | kN | 5000 | 6300 | 6300 | 8000 | 8000 | 10000 | 10000 | |
Nominal Stroke | mm | 3.5 | 6.5 | 3.5 | 8 | 3.5 | 8 | 3.5 | |
Slide Stroke | mm | 50 | 300 | 50 | 350 | 50 | 350 | 50 | |
SPM | min⁻1 | 80-180 | 20-50 | 60-150 | 20-40 | 50-120 | 20-40 | 50-100 | |
MAX. Die Height | mm | 600 | 750 | 650 | 800 | 700 | 850 | 750 | |
Die Height Adjustment | mm | 100 | 250 | 100 | 300 | 100 | 300 | 100 | |
Bolster Area (Lower Bolster) | LxW | mm | 2800x1400 | 3600x1600 | 3200x1500 | 3800x1600 | 3800x1600 | 4000x1600 | 4000x1600 |
3200x1400 | 3800x1600 | 3800x1600 | 4000x1600 | 4000x1600 | 4200x1800 | 4200x1800 | |||
/ | 4000x1800 | / | 4200x1800 | / | 4500x1800 | / | |||
Slide Area (Upper Plate) | LxW | mm | 2800x1400 | 3600x1600 | 3200x1500 | 3800x1600 | 3800x1600 | 4000x1600 | 4000x1600 |
3200x1400 | 3800x1600 | 3800x1600 | 4000x1600 | 4000x1600 | 4200x1800 | 4200x1800 | |||
/ | 4000x1800 | / | 4200x1800 | / | 4500x1800 | / | |||
Main Motor Power | kW | 90 | 110 | 110 | 132 | 132 | 160 | 160 | |
Height Above Floor | mm | 5800 | 7400 | 6200 | 7800 | 6600 | 8200 | 7000 | |
Direction of Moving Bolster | mm | / | Move Down | / | Move Down | / | Move Down | / | |
Specification | P2H-1250 P2HL-1250 | P2H-1600 P2HL-1600 | ||
I | I | |||
Nominal Force | kN | 12500 | 16000 | |
Nominal Stroke | mm | 8 | 10 | |
Slide Stroke | mm | 400 | 450 | |
SPM | min⁻1 | 15-30 | ||
MAX. Die Height | mm | 900 | 1000 | |
Die Height Adjustment | mm | 300 | 300 | |
Bolster Area (Lower Bolster) | LxW | 4500x1600 5000x1800 5500x1800 | 4500x1600 | 5000x1600 |
5000x1800 | 5500x1800 | |||
5500x1800 | 6000x1800 | |||
Slide Area (Upper Plate) | LxW | 4500x1600 5000x1800 5500x1800 | 4500x1600 | 5000x1600 |
5000x1800 | 5500x1800 | |||
5500x1800 | 6000x1800 | |||
Main Motor Power | kW | 200 | 250 | |
Height Above Floor | mm | 9400 | 10000 | |
Direction of Moving Bolster | mm | Move Down | Move Down | |
FAQ: Frequently Asked Questions
Q1: What makes the P2H series ideal for high-speed applications?
A: Its rigid frame, precision guides, and advanced drive systems enable stable operation at speeds up to 800 SPM, positioning it as a top-tier high speed press for demanding production environments.
Q2: Can the P2H handle ultra-thin materials at high speeds?
A: Yes. Model II's optimized slider motion ensures precise control for stamping 0.1mm silicon steel sheets, making this high speed press machine perfect for electronics manufacturing.
Q3: How does the quick die change system improve productivity?
A: It reduces changeover time by 60%, allowing the high speed power press to switch between jobs rapidly, maximizing uptime in mixed-production scenarios.
Q4: What safety features are included for high-speed operation?
A: Multiple redundant systems, including 0.05s overload detection and dual solenoid valves, ensure safe operation even at maximum speeds.
P2H Straightside Two-Point High-Speed Precision Press - Redefining High-Speed Stamping Performance!
Contact us for tailored solutions: WA/WhatsApp: +86 18317313453
