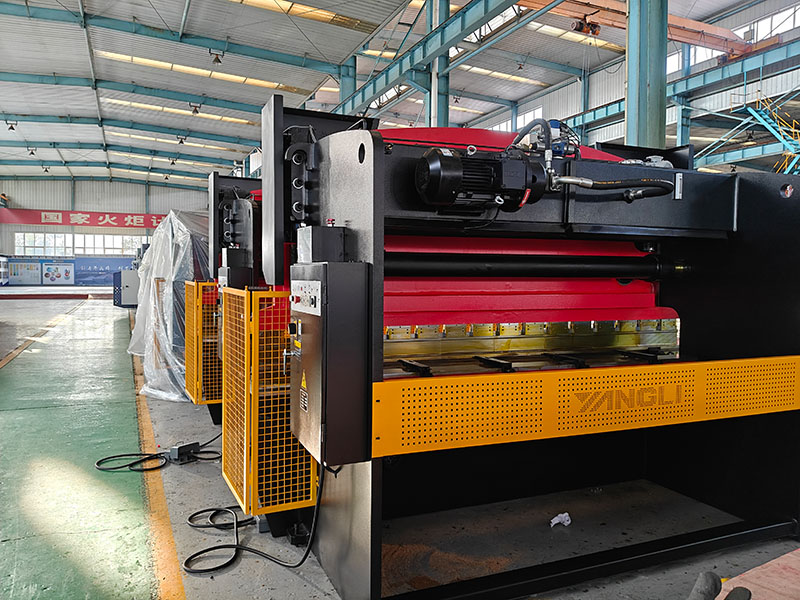

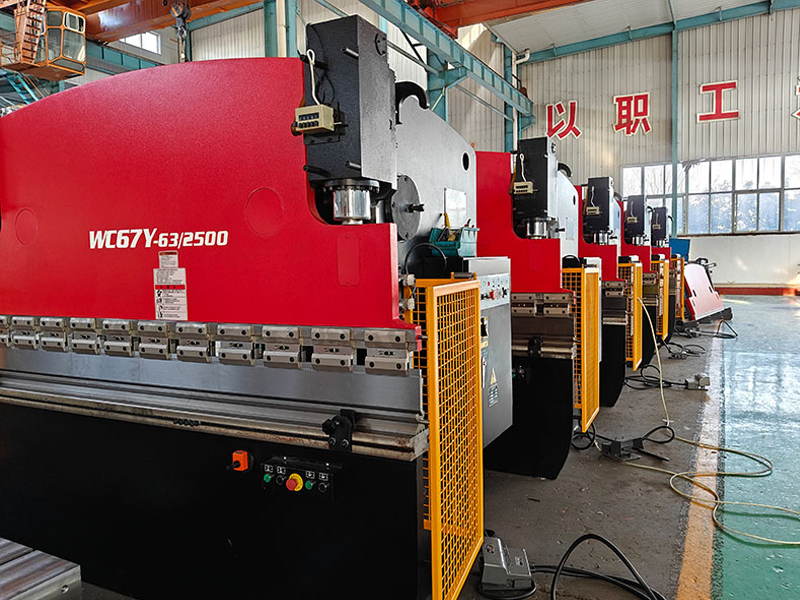

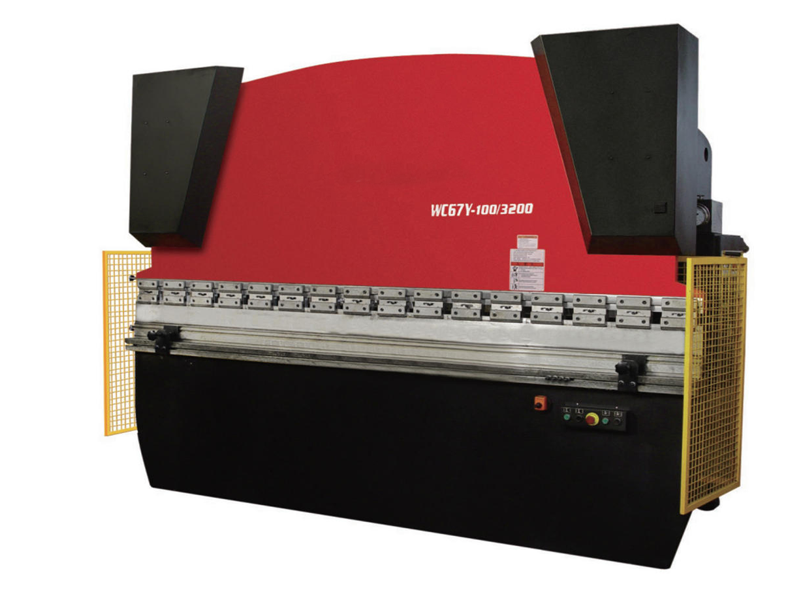

Hydraulic Bending Machine
The Hydraulic Bending Machine, a reliable metal bending machine, features an integral welded frame with tempering for lasting precision. As a hydraulic sheet metal brake, it uses upper-acting hydraulics with stepless pressure regulation and imported seals for reliability. Mechanical synchronization and compound compensation boost accuracy. Slider and backgauge adjustments have electric quick tuning and manual fine-tuning with displays. It offers multiple operation modes, plus safety guards and optional power-off devices. This metal bending machine and hydraulic sheet metal brake ensure safe, efficient bending.
- Information
H1: WC67Y Hydraulic Bending Machine – A Top Hydraulic Sheet Metal Brake for Industrial Fabrication
In sheet metal processing, construction machinery, and hardware manufacturing, the WC67Y Hydraulic Bending Machine shines as a reliable metal bending machine and a high-performance hydraulic sheet metal brake. Its robust structure, advanced hydraulic system, and user-friendly design make it a go-to sheet metal bender for workshops needing consistent results in medium to heavy-duty bending tasks.
H2: Robust Frame Design – The Foundation of This Metal Bending Machine’s Long-Term Precision
H3: Welded Structure with Tempering Treatment
As a premium hydraulic sheet metal brake, the WC67Y Hydraulic Bending Machine features an integral welded frame, reinforced by furnace tempering to eliminate internal stress. This ensures the metal bending machine maintains stable precision for years, with minimal deformation even under repeated high loads (up to 630 tons). Whether handling thin steel or thick metal sheets, its rigidity guarantees consistent bends—reducing rework, a key strength of this sheet metal bender.
H2: Advanced Hydraulic System – Efficiency in This Hydraulic Sheet Metal Brake
H3: Upper-Acting Hydraulics with Stepless Pressure Regulation
Equipped with a hydraulic upper-acting design, this sheet metal bender offers stepless pressure adjustment, adapting to materials 0.5-20mm thick. It uses high-quality imported sealing rings to prevent leaks, extending the hydraulic system’s lifespan—ensuring reliable operation even in 2-shift production. This makes the WC67Y Hydraulic Bending Machine a low-maintenance hydraulic sheet metal brake for busy workshops.
H2: Precision Bending – A Hallmark of This Metal Bending Machine
H3: Compound Compensation for Consistent Accuracy
The machine uses mechanical synchronization paired with an upper-lower compound compensation structure (worktable lower compensation for models above 160 tons). This system offsets frame deflection, ensuring angle deviation ≤0.5°—critical for high-quality parts, a standout feature of this hydraulic sheet metal brake. As a precise sheet metal bender, it delivers results that meet strict industrial standards.
H3: Flexible Adjustments for This Sheet Metal Bender
Both slider stroke and backgauge positioning use electric quick adjustment and manual fine-tuning, with digital displays for precision. This lets operators switch tasks quickly, cutting setup time by 30%—a boon for this metal bending machine in fast-paced production.
H2: User-Friendly Operation in This Metal Bending Machine
H3: Versatile Modes for the Hydraulic Sheet Metal Brake
The WC67Y Hydraulic Bending Machine supports inching, single-cycle, and continuous modes. Commutation and pressure-holding times are controlled via time relays, adapting to diverse bends—from simple 90° angles to complex forms, making this sheet metal bender highly versatile.
H3: Safety Features of This Sheet Metal Bender
Safety is prioritized with a protective guardrail (excluding 40-ton rear and 200+ ton models) and optional door-opening power-off devices. These protect operators during high-speed use, enhancing the hydraulic sheet metal brake’s appeal as a safe metal bending machine.
H2: Technical Parameters
WC67Y-40/2000 | WC67Y-40/2500 | WC67Y-63/2500 | WC67Y-80/2500 | WC67Y-80/3200 | WC67Y-100/2500 | WC67Y-100/3200 | WC67Y-100/4000 | WC67Y-125/3200 | ||
Nominal Force | kN | 400 | 400 | 630 | 800 | 800 | 1000 | 1000 | 1000 | 1250 |
Working Length | mm | 2000 | 2500 | 2500 | 2500 | 3200 | 2500 | 3200 | 4000 | 3200 |
Between Columns | mm | 1650 | 2000 | 2000 | 1990 | 2600 | 1850 | 2550 | 3350 | 2550 |
Throat Depth | mm | 200 | 200 | 250 | 280 | 280 | 320 | 320 | 320 | 320 |
Slide Stroke | mm | 100 | 100 | 100 | 100 | 100 | 130 | 130 | 130 | 130 |
Stroke Adjustment | mm | 80 | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 100 |
Max. Opening Height | mm | 330 | 330 | 340 | 360 | 360 | 390 | 390 | 390 | 390 |
SPM | Min-1 | ≥16 | ≥16 | ≥20 | ≥22 | ≥22 | ≥18 | ≥18 | ≥18 | ≥11 |
Main Motor Power | kW | 4 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Overall Dimension | L | 2210 | 2710 | 2680 | 3500 | 3410 | 2680 | 3380 | 4180 | 3380 |
W | 1250 | 1250 | 1350 | 1650 | 1370 | 1400 | 1400 | 1400 | 1450 | |
H | 2240 | 2240 | 2260 | 2700 | 2300 | 2450 | 2450 | 2450 | 2450 | |
Specification | WC67Y-160/2500 | WC67Y-160/3200 | WC67Y-160/4000 | WC67Y-160/6000 | WC67Y-200/3200 | WC67Y-200/4000 | WC67Y-200/6000 | WC67Y-250/3200 | WC67Y-250/4200 | |
Nominal Force | kN | 1600 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 |
Working Length | mm | 2500 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 | 3200 | 4200 |
Between Columns | mm | 1950 | 2540 | 3140 | 4800 | 2550 | 3260 | 4800 | 2540 | 3140 |
Throat Depth | mm | 330 | 330 | 330 | 330 | 350 | 350 | 350 | 400 | 400 |
Slide Stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 250 | 250 |
Stroke Adjustment | mm | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 180 | 180 |
Max. Opening Height | mm | 465 | 465 | 465 | 465 | 450 | 450 | 450 | 500 | 500 |
SPM | Min-1 | ≥10 | ≥10 | ≥10 | ≥10 | ≥9 | ≥9 | ≥9 | ≥8 | ≥8 |
Main Motor Power | kW | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 18.5 | 18.5 |
Overall Dimension | L | 3050 | 3660 | 4260 | 6140 | 3340 | 4110 | 6120 | 3310 | 4310 |
W | 1600 | 1600 | 1600 | 1710 | 1855 | 1855 | 2065 | 1970 | 1970 | |
H | 2550 | 2550 | 2550 | 2850 | 2745 | 2745 | 3055 | 2915 | 2915 | |
Specification | WC67Y-250/5000 | WC67Y-250/6000 | WC67Y-300/4000 | WC67Y-300/5000 | WC67Y-300/6000 | WC67Y-400/4000 | |
Nominal Force | kN | 2500 | 2500 | 3000 | 3000 | 3000 | 4000 |
Working Length | mm | 5000 | 6000 | 4000 | 5000 | 6000 | 4000 |
Between Columns | mm | 4000 | 5000 | 2900 | 3900 | 4900 | 3140 |
Throat Depth | mm | 400 | 400 | 400 | 400 | 400 | 400 |
Slide Stroke | mm | 250 | 250 | 250 | 250 | 250 | 320 |
Stroke Adjustment | mm | 180 | 180 | 180 | 180 | 180 | 220 |
Max. Opening Height | mm | 500 | 500 | 535 | 535 | 535 | 600 |
SPM | Min-1 | ≥8 | ≥8 | ≥4 | ≥4 | ≥4 | ≥3 |
Main Motor Power | kW | 18.5 | 18.5 | 22 | 22 | 22 | 37 |
Overall Dimension | L | 5120 | 6120 | 4150 | 5150 | 6120 | 4130 |
W | 2210 | 2210 | 1950 | 1950 | 1950 | 2625 | |
H | 2980 | 2980 | 3115 | 3115 | 3520 | 3700 | |
Specification | WC67Y-400/6000 | WC67Y-500/4000 | WC67Y-500/6000 | |
Nominal Force | kN | 4000 | 5000 | 5000 |
Working Length | mm | 6000 | 4000 | 6000 |
Between Columns | mm | 5000 | 3050 | 4760 |
Throat Depth | mm | 400 | 400 | 400 |
Slide Stroke | mm | 320 | 320 | 320 |
Stroke Adjustment | mm | 220 | 220 | 220 |
Max. Opening Height | mm | 600 | 630 | 630 |
SPM | Min-1 | ≥3 | ≥3 | ≥3 |
Main Motor Power | kW | 37 | 37 | 37 |
Overall Dimension | L | 6150 | 4200 | 6200 |
W | 3250 | 4115 | 4115 | |
H | 3900 | 4760 | 4760 | |
H2: FAQ (Frequently Asked Questions)
Q1: What materials can this hydraulic sheet metal brake handle?
A1: This metal bending machine bends carbon steel, stainless steel, aluminum, and copper (0.5-20mm thick)—ideal for metal cabinets, structural parts, and hardware, proving its value as a versatile sheet metal bender.
Q2: How long does this metal bending machine maintain precision?
A2: Thanks to its tempered frame and stable hydraulics, the WC67Y Hydraulic Bending Machine—a top hydraulic sheet metal brake—keeps precision for 5+ years, with annual degradation ≤0.1mm/m under normal use.
Q3: Can the backgauge adjust for complex bends in this sheet metal bender?
A3: Yes. Electric quick adjustment and manual fine-tuning, plus digital displays, make it easy to handle multi-step bends—key for this metal bending machine in diverse production.
Q4: What safety features do large models have?
A4: 200+ ton models lack guardrails but offer optional door-opening power-off devices, ensuring safety for this hydraulic sheet metal brake during heavy-duty use.
