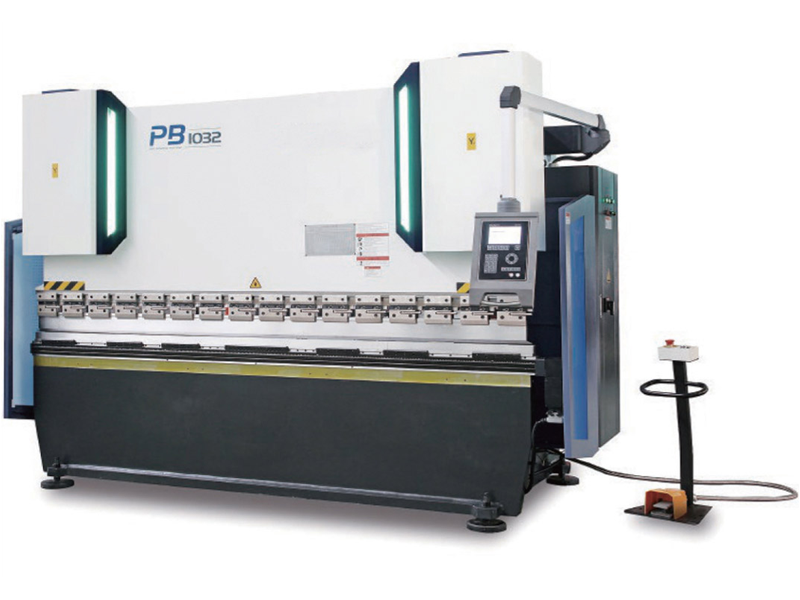

Mechanical Defletion CNC Press Brake
The Mechanical Deflection CNC Press Brake, a high-performance sheet metal brake, features a mechanical deflection compensation system for consistent bending angles. With electro-hydraulic servo valve synchronization, it offers high precision and speed. Its welded steel frame, tempered for stability, uses Dutch DELEM CNC systems. Equipped with multi-axis backgauge and quick upper die clamping, it excels in efficient metal bending. As a versatile bending machine for sale, it’s ideal for diverse fabrication needs, combining reliability and advanced technology in one sheet metal brake.
- Information
H1: PB Mechanical Deflection CNC Press Brake – A Top-Tier Sheet Metal Brake for Precision Bending
As a premium bending machine for sale, the PB Mechanical Deflection CNC Press Brake stands out in metal fabrication, merging mechanical compensation technology with servo control to deliver consistent angles and efficient performance. Ideal for sheet metal workshops, it balances precision, speed, and stability, making it a go-to choice for automotive, aerospace, and hardware industries seeking a reliable sheet metal brake.
H2: Mechanical Compensation: The Core of Angle Consistency in This Sheet Metal Brake
H3: Precision-Engineered Deflection Compensation System
Equipped with a deflection compensation system, this press brake automatically adjusts for frame deflection during bending, ensuring angle consistency within ±0.1° across workpieces. Whether handling thin sheets (0.5mm) or thick plates (12mm), each bend meets specs—reducing rework rates by 30%, a key advantage of this high-performance sheet metal brake.
H2: Servo Control & Stable Structure: Speed Meets Durability in This Bending Machine for Sale
H3: Electro-Hydraulic Servo Valve for High Precision
Powered by an electro-hydraulic servo valve synchronous control system, the PB Mechanical Deflection CNC Press Brake achieves positioning accuracy of ±0.01mm and bending speed up to 15mm/s—30% faster than traditional models. This combination cuts production cycles, enhancing the value of this bending machine for sale.
H3: Tempered Welded Frame: Long-Term Stability
Its steel plate welded structure, fully tempered to eliminate internal stress, ensures frame deformation ≤0.02mm/m over 5 years. This stability makes it a durable sheet metal brake, even in continuous 2-shift operations.
H2: Intelligent CNC & Flexible Operations: Elevating This Sheet Metal Brake
H3: Dutch DELEM Systems for Intuitive Control
Loaded with Holland DELEM’s DA53T/DA58T/DA66T CNC systems, the press brake offers user-friendly programming with 3D simulation. Operators set parameters via touchscreen, with auto-optimized paths—slashing setup time by 40%, a highlight of this bending machine for sale.
H3: Multi-Axis Backgauge & Quick Tool Change
The multi-axis backgauge controls multiple axes for complex bends (U-shapes, Z-shapes). Paired with an upper die quick clamping device, tool changes take under 2 minutes, minimizing downtime—critical for batch production with this sheet metal brake.
H2 Technical Parameters
PB0615 | PB0625 | PB1032 | PB1042 | PB1632 | PB1642 | PB2532 | PB2542 | ||
Nominal Force | kN | 630 | 630 | 1000 | 1000 | 1600 | 1600 | 2500 | 2500 |
Working Length | mm | 1500 | 2500 | 3200 | 4200 | 3200 | 4200 | 3200 | 4200 |
Between Columns | mm | 1100 | 2060 | 2700 | 3700 | 2700 | 3700 | 2700 | 3700 |
Max. Opening Height | mm | 520 | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
Ram Stroke | mm | 215 | 215 | 215 | 215 | 215 | 215 | 215 | 215 |
Throat Depth | mm | 410 | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
Worktable Width | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Approach Speed | mm/s | 160 | 160 | 180 | 180 | 160 | 160 | 130 | 130 |
Bending Speed | mm/s | 11 | 11 | 10 | 10 | 11 | 11 | 11 | 11 |
Return Speed | mm/s | 140 | 140 | 130 | 130 | 145 | 145 | 130 | 130 |
Backgauge Stroke | mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Dimension | L | 2000 | 2950 | 3600 | 4600 | 3650 | 4650 | 3700 | 4700 |
W | 1650 | 1650 | 1650 | 1650 | 1700 | 1700 | 1760 | 1760 | |
H | 2580 | 2600 | 2650 | 2600 | 2580 | 2580 | 2580 | 2580 | |
H2: FAQ
Q1: What materials can this sheet metal brake handle?
A1: It bends carbon steel, stainless steel, and aluminum (0.5-12mm thick), suitable for kitchenware, electrical enclosures, and automotive parts—proving its versatility as a bending machine for sale.
Q2: How long does angle precision last?
A2: Thanks to mechanical compensation and a tempered frame, angle deviation stays ≤0.2° over 5 years, ensuring reliability for this sheet metal brake.
Q3: Is the DELEM system easy to operate?
A3: Yes. Its intuitive interface with pre-loaded templates lets new operators master basic bending in 1-2 days, simplifying use of this bending machine for sale.
Q4: What’s the maximum bending length?
A4: Standard models offer 1.6-3.2m; custom lengths up to 6m are available, adapting this sheet metal brake to large workpieces.
PB Mechanical Deflection CNC Press Brake – Redefine your bending accuracy. As a top sheet metal brake and bending machine for sale, contact us for custom solutions: WeChat/WhatsApp: +86 18317313453
