How Full-Automatic 110-Ton Stamping Production Line Revolutionizes Metal Cabinet Back Panel & Profile Manufacturing
2026-05-22 17:56How Full-Automatic 110-Ton Stamping Production Line Revolutionizes Metal Cabinet Back Panel & Profile Manufacturing
In modern metal metalworking industries, efficiency, precision, and labor reduction are the ultimate goals for manufacturers. If you are manufacturing office furniture parts like steel file cabinet back panels, or producing complex steel profiles like cable trays, warehouse shelving posts, and structural C/Z channels, relying on manual feeding and single-stage stamping is no longer cost-effective.

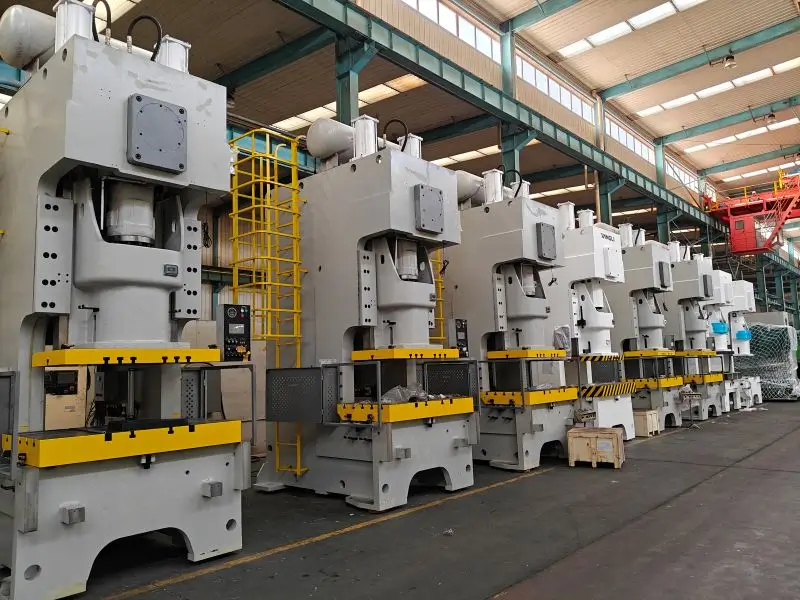

Today, we will break down how a fully automated Xuji MC1-110 sheet metal punching and stamping production line operates seamlessly from a raw steel coil to high-quality finished perforated profiles and cabinet components.
Key Application: Steel File Cabinet Back Panel Manufacturing

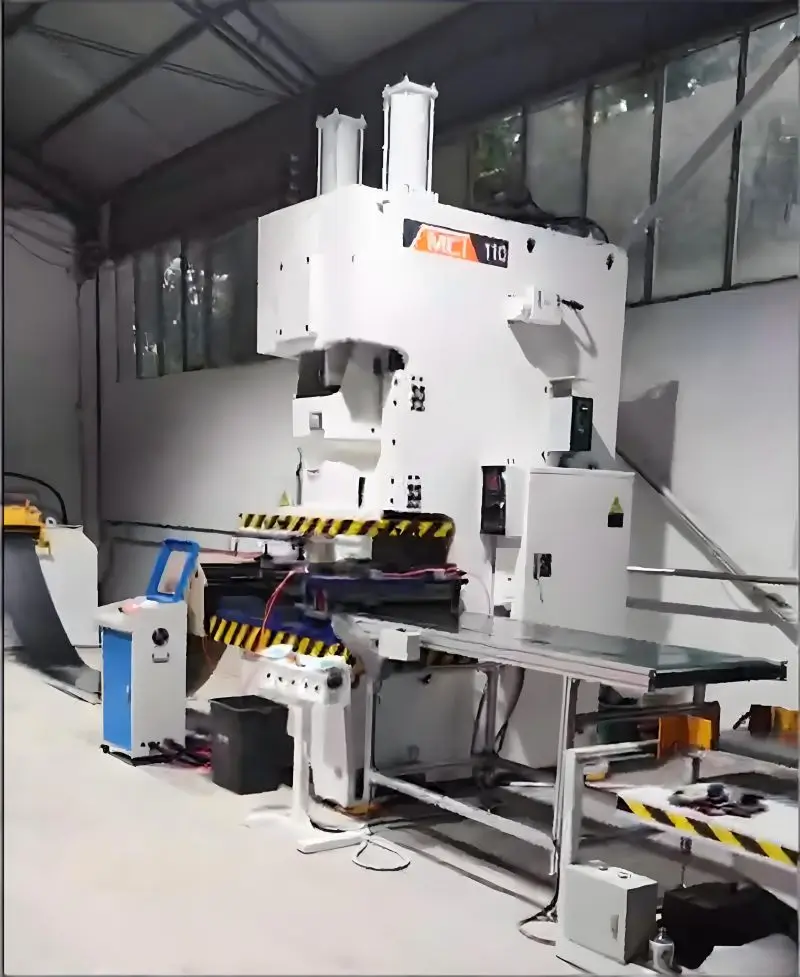

One of the most prominent setups for this 110-ton automated system is the automatic metal cabinet back panel production line.
Steel file cabinets require exceptional dimensional accuracy and flawless surface quality for seamless assembly. The Xuji MC1-110 C-frame stamping press machine is specifically configured to handle the multi-hole perforation, corner notch cutting, and edge bending of file cabinet back panels in a continuous motion. By integrating coil-feeding with precise die positioning, the system eliminates traditional manual handling scratches, ensuring that every back panel meets strict office furniture industrial tolerances.
The Architecture of an Advanced Auto-Stamping Line
As shown in our latest factory operation video, this high-efficiency automatic stamping line integrates multiple specialized machines into a synchronized B2B workflow. The line primarily consists of:
· Heavy-Duty Decoiler & Leveler: The line begins with a high-capacity decoiler that holds the steel coil. The raw metal sheets automatically pass through a multi-roller leveling machine to eliminate internal stress, ensuring absolute flatness before entering the press.

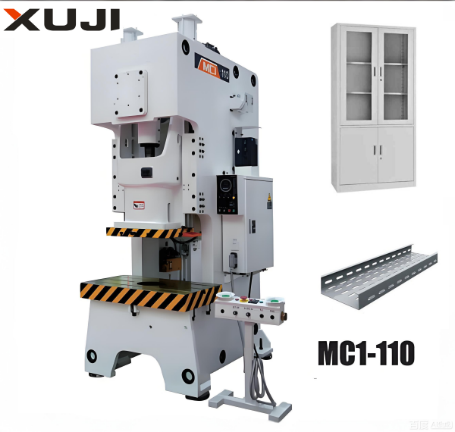

· Xuji MC1-110 High-Performance Press: The heart of this system is the Xuji 110-ton high-precision C-frame press machine. Known for its rigid gap-frame structure and dynamic stability, it delivers continuous, high-speed stamping strokes flawlessly.

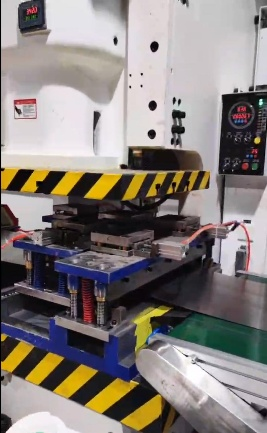

· Customized Progressive Stamping Die: Inside the press, a heavy-duty multi-station progressive die is installed. This mold performs multiple operations—such as multi-hole punching, sheet metal shearing, and section bending—simultaneously within a single press stroke.
· Automated Belt Conveyor System: Once formed, the finished cabinet back panels or perforated profiles are instantly transferred via an industrial conveyor belt to the next station, mitigating any manual handling risks.
Versatile Applications of C-Frame Stamping Presses
The Xuji MC1-110 belongs to the versatile category of C-frame stamping presses (also known as open-back or gap-frame presses). Due to their three-sided open access, which allows for easy die installation and versatile material feeding directions, these machines are highly sought after across various manufacturing sectors.
Beyond cabinet panels, some of the most popular applications include:
1. Home Appliance Components: Ideal for high-speed progressive die stamping for appliance parts, such as refrigerator side shells, washing machine drums, and microwave metal enclosures.
2. Automotive Hardware & Brackets: Highly efficient for manufacturing automotive reinforcement brackets, seat sliders, connector links, and other high-strength structural auto parts.
3. Electrical & Electronics Enclosures: Perfect for stamping precision server racks, power supply boxes, and electrical junction boxes.
4. General Hardware & Fasteners: Extensively used for stamping door hinges, architectural brackets, washers, and specialized metal fittings.
Key Technical Specifications of the System
Parameter | Specification / Value |
Main Press Brand | Xuji Group (MC1 110) |
Nominal Capacity | 1100 kN (110 Tons) |
Raw Material Form | Steel / Galvanized Coils |
Tooling Type | Multi-station Progressive Die |
Application Industry | Logistics Racking, Cable Management, Steel Construction |
Core Advantages for B2B Buyers
️ Unmatched Production Efficiency
By replacing manual sheet placement with automatic continuous coil-feeding, the output speed of cabinet panels is increased by over 200%. The line can run 24/7 with minimal human intervention.
High Precision & Consistency
Driven by advanced PLC systems and servo feeders, the distance between the punched holes and the bending angles remains perfectly consistent. This ensures a 100% pass rate during the final cabinet assembly.
Rapid ROI through Labor Cost Reduction
A single operator can manage the entire production line from the central control panel. This drastically lowers your factory's labor costs while maximizing workshop safety.
Looking for a Customized Metal Stamping Solution?
As a leading high-speed gap frame press supplier, Xuji (Henan) Machinery Co.,Ltd specializes in designing and engineering tailored turnkey automated production lines based on your specific profile drawings and factory layout. Whether you need a 110-ton system for office furniture production or a heavy-duty 400-ton automotive stamping line, our engineering team provides complete support from die design to final commissioning.
Contact our engineering experts today to get a free layout drawing and quotation!
