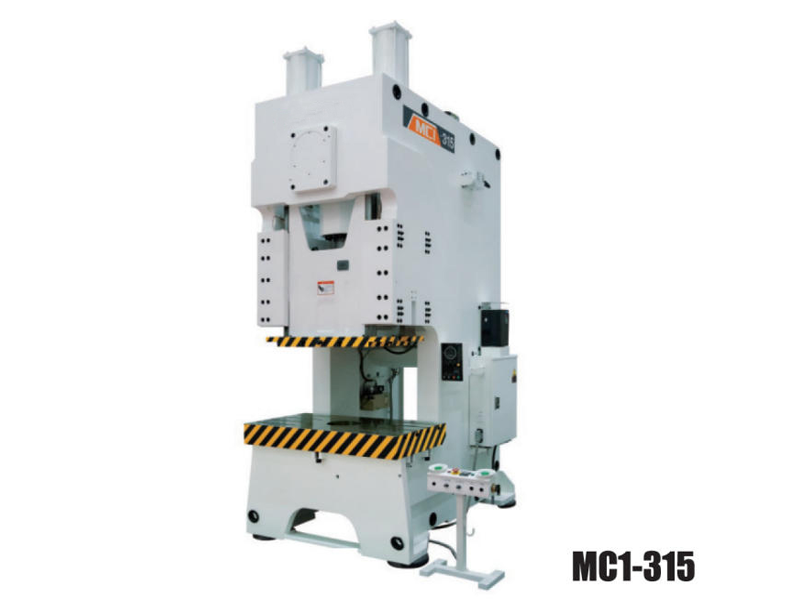

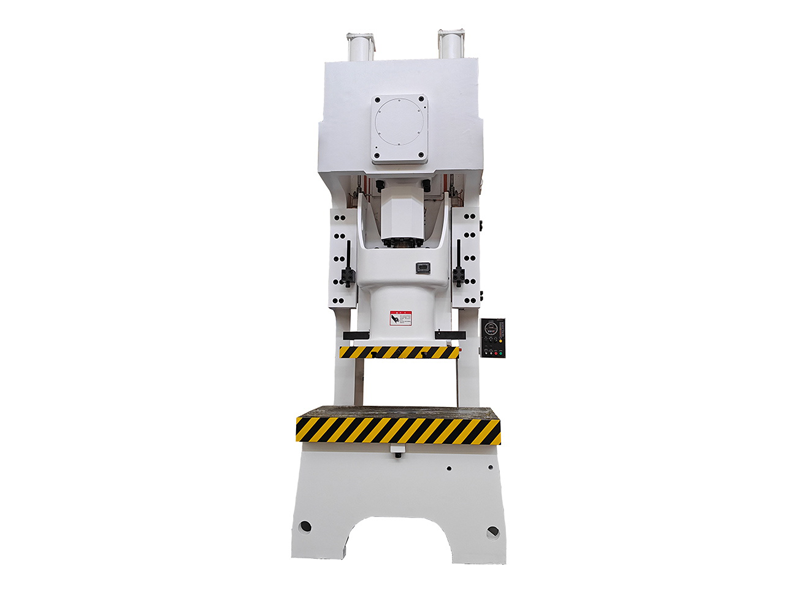

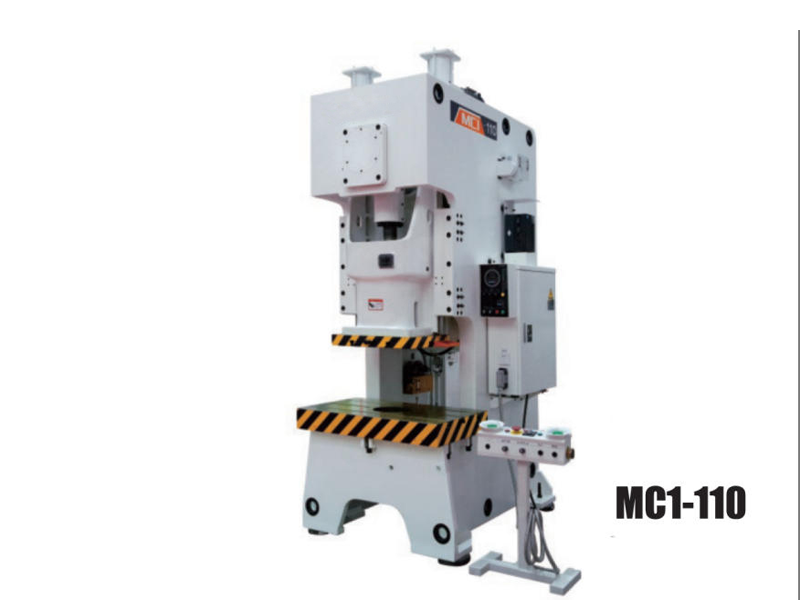

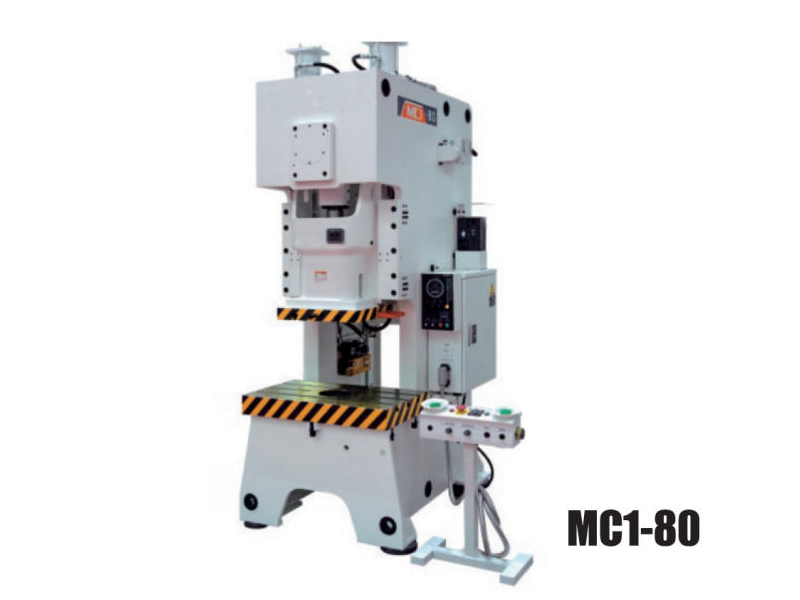

Open Front Single Point Crank Press

The C frame single-point press, a versatile c frame press, is designed for metal stamping, forming and shallow drawing processes. As a high-performance crank press machine, it adopts an open body structure and single-point drive technology, suitable for high-precision processing of small and medium-sized workpieces. This c frame press for sale features a C-shaped body that provides three-sided open operating space, supporting fast mold change and diversified production needs—ideal for industries like automotive parts, home appliance hardware, and electronic components.

Brand: Xuji
Product origin: China

Information

C Frame Single Point Press | Precision stamping and efficient production solutions for c frame press

Product Overview: Flexible and Reliable Industrial Stamping Equipment

The C frame single-point press, a versatile c frame press, is designed for metal stamping, forming, and shallow drawing processes. As a high-performance crank press machine, it adopts an open body structure and single-point drive technology, suitable for high-precision processing of small and medium-sized workpieces. Whether you are looking for a c frame press for sale or a specialized Single Action Crank Press, our equipment features a C-shaped body that provides three-sided open operating space.

This layout supports fast mold change and diversified production needs—ideal for industries like automotive parts, home appliance hardware, and electronic components. We offer a full range of specifications, specifically covering the 25 Ton to 400 Ton Crank Press segment, to ensure that every metalworking shop finds its perfect match.

I. Core Advantages of C Frame Crank Press

The crank press machine's overall accuracy reaches JIS Class I standard, ensuring precision in every stroke.
High-stiffness body welded by steel plates is a key feature of this c frame press, minimizing deflection under load.
Fixed stroke rate ensures stable performance for the crank press machine during continuous production cycles.
Combined dry friction clutch enhances the operational efficiency of this Single Action Crank Press.
Rectangular six-sided lengthened guide rails (MC1-315/400) are standard for the c frame press to maintain slide stability.
Eight-sided lengthened guide rails (specific models) provide superior resistance to eccentric loads on the crank press machine.
Hydraulic overload protection device is integrated for the crank press machine's safety and tool protection.
Manual die adjustment with scale indication (MC1-16) and digital display (MC1-25) is available on this c frame press.
Electric die adjustment with digital display (MC1-45+ models) is a standard feature for this c frame press.
Pull-up type balance cylinder device (except MC1-16) balances the weight of the slide and upper die in the Single Action Crank Press.
Imported double solenoid valves ensure the reliability of the c frame press for sale.
Electric thick-oil forced lubrication system keeps the crank press machine running smoothly with minimal maintenance.
Manual thin-oil lubrication for the balance cylinder is included in this c frame press.
Integrated panel (including electronic cam) allows for easy control of this c frame press.
Controlled by an international-brand PLC, making it a highly reliable Single Action Crank Press.
International-brand contactors and buttons are used throughout this c frame press for sale.
Equipped with a part-blowing device to improve the productivity of the crank press machine.
Optional: wet clutch, air cushion, photoelectric protection, etc., are available for this c frame press for sale to meet specific safety standards.

II. Technical Parameter

Specification			XMC1-16	XMC1-25	XMC1-45	XMC1-63	XMC1-80	XMC1-110
Nominal Force		kN	160	250	450	630	800	1100
Nominal Stroke		mm	2	3.2	4	4	5	6
Slide Stroke		mm	60	80	100	130	150	180
SPM	Fixed	min⁻	135	100	80	70	60	50
SPM	Variable (Operation)	min⁻	120-150	80-120	40-90	35-80	50-70	30-60
MAX Die Height		mm	220	250	270	300	340	350
Die Height Adjustment		mm	30	50	60	80	80	90
Between Slide Center and Frame		mm	110	210	230	300	300	350
Bolster Area (F ·B X L ·R)		mm	310x700	400 X 700	440 X 810	580 x 900	580 x 1000	680 x 1150
Bolster Thickness		mm	65	80	100	110	120	140
Bed Opening (F ·B X L ·R)		mm	200x300	260 X 190	300 X 200	370 x 240	370 x 240	370 x 300
Slide Area (F ·B X L ·R)/Copy		mm	250x320	340 X 360	340 X 410	420 x 500	450 x 560	500 x 650
Shank Hole (Dia x Depth)		mm		φ40 X 60	φ40 X 75	φ50 X 75	φ50 X 75	φ60 X 75
Between columns		mm	460	440	530	580	630	700
Main Power		kW	3	3	5.5	5.5	7.5	11
Air Cushion (Option)	Eject Force x Stroke	kNxmm	/	/	30 x 70	40 x 70	40 x 70	60 x 70
Outline Dimension (F·B X L·R X H)		Mm	1500 X 1040 X 2000	1260 Xφ40 X 60 1050 X 2290	1380 x 1150 x 2530	1600 x 1250 x 2870	1610 x 1320 x 3060	1800 x 1370 x 3270

Specification			XMC1-125	XMC1-160	XMC1-200	XMC1-250	XMC1-315	XMC1-400
Nominal Force		Nominal Force	1250	1600	2000	2500	3150	4000
Nominal Stroke		Nominal Stroke	6	6	6	8	8	10
Slide Stroke		Slide Stroke	180	200	200	250	250	250
SPM	Fixed	min⁻	50	45	40	30	30	25
SPM	Variable (Operation)	min⁻	30-60	25-50	25-50	20-40	25-40	20-30
MAX Die Height		mm	350	400	450	500	550	550
Die Height Adjustment		mm	90	110	110	120	120	120
Between Slide Center and Frame		mm	350	380	410	420	460	490
Bolster Area (F ·B X L ·R)		mm	680 x 1150	740 X 1300	800 X 1400	820 X 1550	880 X 1650	940 X 1800
Bolster Thickness		mm	140	150	160	180	200	200
Bed Opening (F ·B X L ·R)		mm	370 x 300	420 X 340	420 X 340	370 X 570	400 X 850	440 X 580
Slide Area (F ·B X L ·R)/Copy		mm	540 x 680	580 X 770	650 X 850	680 X 950	700 X 1000	720 X 1200
Shank Hole (Dia x Depth)		mm	φ60 X 75	φ65 X 90	φ65 X 90	φ70 X 90	φ70 X 90	φ70 X 90
Between Columns		mm	720	790	820	960	1020	1020
Main Power		kW	11	15	18.5	22	30	37
Air Cushion (Option)	Eject Force x Stroke	kNxmm	60 x 70	100 X 90	100 X 90	160 X 90	160 X 90	160 X 90
Outline Dimension (F·B X L·R X H)		Mm	1180 x 1410 x3270	2130 X 1520 X 3600	2190 X 1610 X 3850	2380 X 1730 X 4530	2505 X 1880 X 4745	2820 X 1920 X 4895

III. Typical Application Scenarios

Auto parts: brake pads, bracket punching, and reinforcement plates with the crank press machine.
Electronic appliances: heat sink fabrication and connector molding via this c frame press.
Hardware products: hinges, lock components, and die casting finishing using this c frame press for sale.
Heavy-Duty Forming: Utilizing our 25 Ton to 400 Ton Crank Press lineup for deep-draw and high-pressure stamping.

IV. Why Choose Our Open Single-Point Press?

Intelligent Upgrade: The PLC control system for the c frame press supports parameter storage and fault self-diagnosis, reducing downtime for your crank press machine.
Safe and Reliable: Every c frame press for sale is CE-certified, featuring two-hand operation and automatic overload protection.
Versatile Range: From small-scale precision to heavy-duty industrial tasks, our 25 Ton to 400 Ton Crank Press series provides the right tonnage for any job.
Specialized Design: As a premier Single Action Crank Press, it offers the simplest yet most effective mechanical transmission for high-speed stamping.

V. FAQ

Q1: Does the C frame single-point press support automation transformation?

A1: Yes. This c frame press can integrate auto feeders and manipulators. Our 25 Ton to 400 Ton Crank Press models are specifically designed to sync with automated production lines.

Q2: What are the foundation requirements for a new installation?

A2: Low-vibration design allows installation on ordinary reinforced floors for most models, making it a flexible c frame press for sale for various factory layouts.

Q3: How long does it take for mold change?

A3: The standard quick-clamping system enables 10-minute mold changes on this crank press machine, significantly outperforming traditional Single Action Crank Press designs.
