Gantry Two Point Press With High Rigidity Battery Square Aluminium Cover

HP2 Series High Rigidity Gantry Double-Point Press - Precision Battery Square Aluminum Shell Cover Multi-Station Deep Drawing Solution

Product Overview: Engineered for High-Precision Stamping of Battery Square Aluminum Shell Covers

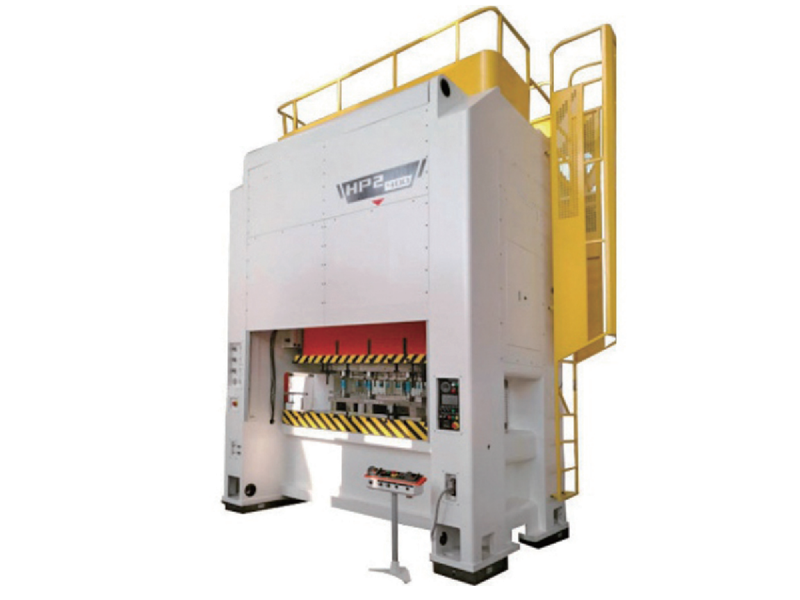

The HP2 Series High Rigidity Gantry Double-Point Press is a specialized deep drawing press machine designed for efficient, high-precision multi-station stretching of new energy vehicle battery square aluminum shell covers. This aluminium case deep drawing press integrates high-rigidity structure, precision guidance, and servo automation technology, supporting production of covers for mainstream shells including 26148, 40173, 51173, and 71173. The system delivers a highly stable, efficient, and precise battery cover automation production line optimized for demanding pressing drawing operations.

Core Technology Advantages: Exceptional Precision and Rigidity

Superior Structural Rigidity and Accuracy

• Achieves stringent JIS 1-grade accuracy standards for precision stamping and deep drawing.

• Features an integral welded steel frame construction with stress-relieving treatment, providing exceptional rigidity. The 1/10000 frame stiffness exceeds industry standards for deep drawing press machines, minimizing deformation and ensuring long-term operational stability.

Precision Guidance and Stable Transmission

• Incorporates an eight-sided high-precision long guide rail system for maximum slide stability and guiding accuracy, ensuring dimensional consistency during complex pressing drawing processes.

• Utilizes a high-rigidity eccentric shaft drive gear with an idler gear assembly. This double action deep drawing press machine design enhances transmission stability, increases connecting rod force span, and significantly improves resistance to eccentric loading - critical for deep drawing operations. The load-bearing component strength surpasses conventional crank presses, eliminating crankshaft deflection issues inherent to traditional designs.

Advanced Lubrication and Simplified Adjustment

• Employs an electric thin-oil circulation lubrication system for automatic, metered lubrication of critical friction points during intensive pressing drawing cycles, reducing wear and extending service life.

• Precision adjustment utilizes a single-sided method: left-side solid contact with right-side cylindrical pin locking, streamlining setup and enhancing accuracy retention.

Integrated Automation: Ensuring Efficiency and Stability

• Combines a three-in-one servo feeder, conveyor belt, and precision progressive die into a synchronized automation system for this aluminium case deep drawing press.

• Advanced synchronization control enables precise unit coordination, delivering high-stability operation under heavy loads for high-efficiency, high-precision mass production of battery covers.

Target Applications and Specifications

• Primary Application: Multi-station deep drawing forming of square aluminum shell covers for new energy vehicle batteries.

• Compatible Cover Specifications: Supports cover production for 26148, 40173, 51173, and 71173 battery shells using this specialized deep drawing press machine.

Advantages of the HP2 Series Press

• Precision Performance: JIS 1-grade accuracy combined with eight-sided guide rails ensures dimensional perfection in deep drawing.

• Maximum Rigidity: 1/10000 integral welded frame with eccentric shaft/idler gear transmission resists deflection under eccentric loads, essential for a high-performance double action deep drawing press machine.

• Optimized Efficiency: Integrated three-in-one servo feeding automation enables high-speed, stable production.

• Application-Specific Design: Engineered as a dedicated aluminium case deep drawing press to overcome traditional press limitations.

• Enhanced Reliability: Electric thin-oil lubrication and robust construction minimize maintenance and extend operational life in demanding pressing drawing environments.

Technical Specifications Overview (Typical Values)

• Accuracy Standard: JIS Grade 1

• Frame Stiffness: 1/10000

• Guidance System: Eight-Sided High-Precision Long Guide Rails

• Drive System: High-Rigidity Eccentric Shaft Drive Gear with Idler Assembly

• Lubrication System: Electric Thin-Oil Circulation

• Accuracy Adjustment: Single-Sided (Left Contact, Right Cylindrical Pin Lock)

• Automation Integration: Three-in-One Servo Feeder, Conveyor, Progressive Die

• Compatible Products: Covers for 26148, 40173, 51173, 71173 Battery Shells

• Press Type: Double Action Deep Drawing Press Machine

Technical Parameter:

Frequently Asked Questions (FAQ)

Q1: What defines "JIS Grade 1 Accuracy" for this deep drawing press machine?
A1: JIS (Japanese Industrial Standard) Grade 1 represents the highest accuracy class for straight-side presses. It mandates stringent tolerances for slide parallelism, verticality, and table flatness, ensuring exceptional dimensional stability and part consistency during high-speed stamping and deep drawing operations, essential for precision battery covers.

Q2: How does 1/10000 frame stiffness benefit aluminium case deep drawing press operations?
A2: This high stiffness value indicates superior resistance to elastic deformation under load. Benefits include:

• Extended Die Life: Improved die alignment reduces uneven wear and galling during intensive pressing drawing.

• Enhanced Part Accuracy: Minimizes dimensional variation and improves cover flatness in deep drawing.

• Process Stability: Increased resistance to eccentric loading ensures reliability in multi-station stretching crucial for battery shell production.

Q3: Why is the HP2 configured as a double action deep drawing press machine?
A3: The double-action configuration (with independent blank holder and punch controls) provides precise control over material flow during deep drawing operations. This is essential for forming complex, high-precision aluminium battery covers without wrinkles or splits, especially with challenging materials and geometries.

Q4: What advantages do eight-sided guide rails offer for pressing drawing operations?
A4: Eight-sided guide rails provide greater contact area and constraint than typical designs. This delivers superior guiding accuracy and stability during deep drawing, critically minimizing slide tilt and vibration - essential for maintaining precise concentricity between punch and die throughout the drawing stroke.

Q5: What is the function of the three-in-one servo feeder in this aluminium case deep drawing press line?
A5: The three-in-one servo feeder integrates decoiling, leveling, and feeding functions. Its key roles are:

• Precision Feeding: Servo-driven control achieves high-accuracy material advancement (±0.03mm), critical for progressive deep drawing.

• Automated Efficiency: Enables continuous, synchronized material handling with the press for stable, high-volume production.

• Material Conditioning: Ensures flat, stress-free material enters the deep drawing press machine, preventing defects.

Q6: Why is the eccentric shaft drive with idler gear superior to a crankshaft for a double action deep drawing press machine?
A6: This design is fundamental to the HP2's performance in deep drawing:

• Eccentric Load Resistance: Increased connecting rod span significantly improves off-center load capacity, vital for multi-station drawing where forces are uneven.

• Minimized Deflection: The eccentric shaft assembly offers greater strength and reduced elastic deformation compared to crankshafts, maintaining precision alignment throughout the drawing stroke.

• Smoother Operation: The idler gear optimizes force transmission, resulting in quieter running and increased durability for demanding battery cover deep drawing cycles.
