Transfer Drawing Press

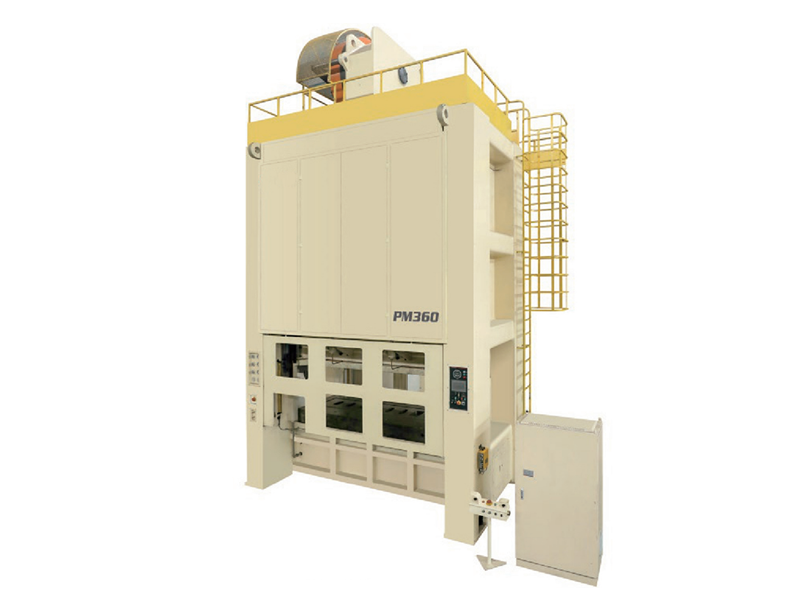

PM series multi-station stretching press - intelligent equipment for high-precision shell stretching

In precision fields like new energy batteries, industrial parts and home appliance manufacturing, multi-station stretching presses such as the deep draw transfer press have become core equipment for improving complex workpiece forming efficiency. As a professional Multi-station transfer press and Multi-station drawing press, our PM series also includes a high-performance brass drawing press for brass material processing. Aiming at multi-station stretching pain points, this deep draw transfer press adopts an innovative mandrel horizontal placement + double-sided eccentric gear transmission, breaking traditional crankshaft machine limitations. With JIS-1 grade precision and excellent anti-eccentric load performance, it provides a reliable high-precision shell stretching solution. When customers select equipment, they often focus on deep drawing machine price while valuing performance, and our PM series achieves an ideal balance between high quality and cost-effectiveness.

I. Innovative transmission structure, reshaping multi-station stretching standards

1. Mandrel horizontal placement + double-sided eccentric gears, enhancing anti-eccentric load capability

The deep draw transfer press adopts a mandrel horizontal layout and double-sided eccentric gear transmission, increasing the connecting rod force point span by 30% (vs. traditional structures) to boost anti-eccentric load capacity by over 50%. This design structurally solves crankshaft deformation and poor deflection, with force-bearing parts 40% stronger than crankshaft machines, ensuring stability in complex stretching. As a high-quality Multi-station drawing press, it is particularly suitable for asymmetric workpiece forming on a brass drawing press, widely used in brass shell processing. When consulting deep drawing machine price, customers will find that this advanced structure reduces long-term maintenance and scrap costs, enhancing investment value.

2. JIS-1 level precision, full-stroke precision control

The equipment strictly follows JIS-1 level precision (Japan’s highest industrial standard). As a professional Multi-station transfer press, its slider uses full-range body guide rail guidance, combined with high-precision roller guide rails and hydraulic preload, achieving ≤0.02mm/m straightness and ±0.01mm bottom dead point repeat positioning accuracy. Even in continuous high-speed stamping, this deep draw transfer press maintains excellent precision, guaranteeing high-end shell stretching—including brass materials on a brass drawing press. The precision advantage of this Multi-station drawing press also stands out in the market when considering deep drawing machine price, as it reduces scrap rates and improves production efficiency.

II. Industry-leading advantages, helping customers reduce costs and increase efficiency

1. Efficient and energy-saving, cutting overall costs

Through integrated multi-station layout, the deep draw transfer press integrates traditional single-station multi-equipment lines into one press, reducing plant space by 80%. As a high-efficiency Multi-station transfer press, it features a servo drive system and intelligent synchronous control, reaching up to 40 stamping times/minute and over 98% material utilization. When evaluating deep drawing machine price, this efficiency translates to significant savings—lower energy consumption, less space, and fewer labor costs. For 54173 shell stamping, opening size error is ≤0.05mm and verticality deviation ≤0.1°, reducing scrap and post-correction costs, which positively impacts deep drawing machine price value. The brass drawing press model also inherits this efficient design, ensuring high productivity in brass processing.

2. Strong adaptability, covering diverse stretching needs

Specially designed for high-precision shell stretching on a brass drawing press, the equipment stably completes multi-station forming of square battery shells, filters, aerosol cans and other complex workpieces. As a versatile Multi-station drawing press, it suits various metals and workpieces. For new energy battery shell deep drawing, the optimized core shaft transmission ensures uniform force on copper-aluminum composite sheets, avoiding side wall thinning and bottom cracking common in traditional machines, with yield rate over 99.2%. This performance makes the deep draw transfer press competitive in the deep drawing machine price range, adapting to multiple scenarios and reducing the need for multiple sets of equipment.

III. Precision models for high-end shell stamping scenarios

1. New energy field: square battery shell forming

With mandrel horizontal anti-eccentric load design and JIS-1 precision, the deep draw transfer press perfectly adapts to new energy square battery shell stretching (e.g., 71173 model). As an advanced Multi-station drawing press, it achieves 15mm deep one-time forming for 1.2mm thick aluminum shells, with ≤±0.03mm opening size fluctuation and 0.08°/100mm vertical accuracy, meeting strict standards. Many new energy enterprises choose this equipment for its precision and reasonable deep drawing machine price, delivering high return on investment.

2. Industrial parts: filter and aerosol can production

For thin-wall stretching of filter shells (φ80-150mm) and aerosol cans (wall thickness 0.3-0.8mm) on a brass drawing press, the equipment solves side wall wrinkles and bottom depressions via slider full-stroke guide rail guidance and pressure curve intelligent compensation. As a high-performance deep draw transfer press, actual production verifies: aerosol can stretching yield rises from 85% to 97%, and efficiency increases by 60%. As a cost-effective Multi-station transfer press, it becomes popular for enterprises considering deep drawing machine price, significantly improving efficiency and reducing waste.

IV. Full life cycle service, relieving customer worries

1. Customized solutions for personalized needs

We provide full-dimensional customization for the deep draw transfer press, including tonnage (500-3200 tons), workstations (5-12), and automation configuration. Whether a Multi-station drawing press for complex workpieces or a brass drawing press for brass materials, we customize to customer needs. For special shells (e.g., flanged, stepped), servo hydraulic pads and floating die devices are integrable for precise material flow control. When discussing customization, clients often inquire about deep drawing machine price, and our team offers competitive quotes, ensuring suitable equipment at a reasonable price.

2. Intelligent operation and maintenance for stable operation

The deep draw transfer press’s industrial IoT module monitors 20+ key parameters (slider displacement, gearbox oil temperature, guide rail wear) in real time, combining AI to predict maintenance cycles. This intelligent design applies to our Multi-station drawing press and brass drawing press models, ensuring long-term stable operation. The standard remote diagnosis system locates over 90% of faults within 5 minutes, cooperating with a national 24-hour response network to minimize downtime, indirectly enhancing deep drawing machine price long-term value.

V.    Technical parameters

VI. FAQ Frequently Asked Questions

Q1: How does the equipment achieve stronger anti-eccentric load capability than crankshaft machine tools?

A1: The deep draw transfer press adopts mandrel horizontal placement + double-sided eccentric gear transmission, increasing load-bearing strength by 40% via extended connecting rod span (up to 1.2m) to solve crankshaft deformation. This applies to our Multi-station transfer press and brass drawing press for complex conditions.

Q2: What precision standard does the equipment meet? Which scenarios is it suitable for?

A2: It follows JIS-1 precision (Japan’s highest), with ≤0.02mm/m slider straightness, suitable for new energy battery shells, filter shells, and brass components on a brass drawing press. As a high-precision Multi-station drawing press, it’s valued by customers inquiring about deep drawing machine price.

Q3: Can ultra-thin metal sheets below 0.5mm be processed?

A3: Standard model suits 0.3-8mm plates; customized parts ensure wrinkle-free stretching for ≤0.5mm materials on this brass drawing press. The deep draw transfer press and Multi-station transfer press also support this, important for comparing deep drawing machine price and performance.

Q4: What are the core advantages over traditional multi-station presses?

A4: Deep draw transfer press advantages: ① 50% stronger anti-eccentric load; ② JIS-1 precision; ③ 30% longer mandrel life, optimizing deep drawing machine price value. Our Multi-station drawing press and brass drawing press have obvious efficiency advantages.

Q5: Does the equipment support docking with existing automated production lines?

A5: It supports seamless docking with robot loading/unloading, visual inspection and MES systems. This applies to our deep draw transfer press, Multi-station transfer press, brass drawing press and all models. Contact our sales team for integration and deep drawing machine price inquiries.
