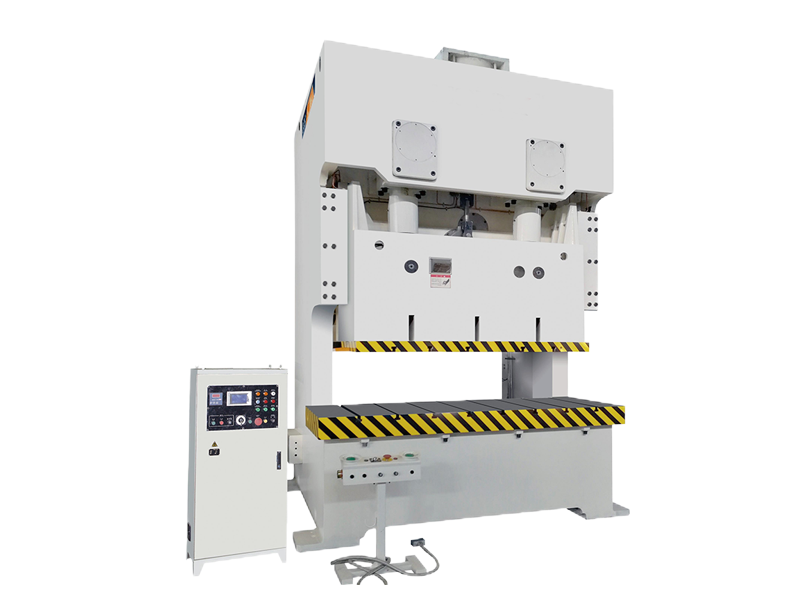

Open Font Two Point Press
Xuji high-performance open front two-point press, as a superior double crank press, employs dual-crankshaft counter rotating synchronous drive system, ensuring balanced pressure application on both left and right pressing points. This design of the double crank press achieves a 70% improvement in worktable load uniformity. The performance accuracy of this double crank press can reach to JIS I Class, and it can stably process wide metal sheers over 2000 mm in width (such as automotive longitudinal beams and household appliance casings), effectively resolving the issue of off-center loading and warping commonly associated with single-point presses.
- Information
JIS I Class High-performance open front two-point press | Large Worktable High Precision Press Machine
Xuji's MC2 series C frame power press, a high-end benchmark model in the metal forming field, is an outstanding C frame crankshaft press integrated with double crank press technology. It adopts a high-rigidity steel plate welded frame and a counter-rotating double crankshaft design, effectively offsetting lateral forces. Equipped with eight-sided extended guide rails, the overall machine precision meets JIS Class 1 standard.
Configured with an international brand PLC control system, imported double valves and hydraulic overload protection device, it features electric adjustment and digital display of slide mold height for precision and convenience. The electric forced grease lubrication system ensures long-term stable operation, with a mean time between failures exceeding 500 hours.
Widely applicable to complex stamping processes such as auto parts and home appliance sheet metal, it can be adapted to automated production lines, balancing high-efficiency output and precision forming needs, and demonstrating excellent performance and reliability.
I. Core Advantages of Open Front Two Point Press:
Dual-Point Symmetric Drive: Eliminates Eccentric Load Deformation
Xuji high-performance open front two-point press employes dual-crankshaft counter rotating synchronous drive system, ensuring balanced pressure application on both left and right pressing points. This design achieves a 70% improvement in worktable load uniformity. The performance accuracy can reach to JIS I CIt can stably process wide metal sheers over 2000 mm in width (such as automotive longitudinal beams and household appliance casings), effectively resolving the issue of off-center loading and warping commonly associated with single-point presses.
High-Rigidity Open C-Frame: Engineered for Heavy-Duty Dies
The press is built with high-strength steel welded frame with rectangular six-sided extended linear guides which supports exceptional lateral load resistance and supports Heavy-Duty Die Installation.
Hydraulic Overload Protector:
It is equipped with hydraulic overload protector, ensuring the operation safety and preventing the damage due to overloaded pressure.
II. Features:
JlS I accuracy
High - rigidity steel welded frame
Double crankshafts with reverse rotation to cancel lateral forces
Fixed strokes per minute (SPM)
Combined dry - friction clutch
Six - face rectangular lengthened guide
Hydraulic overload protection
Electric adjustment with digital display
Lifting balance cylinder
Imported dual solenoid valve
Electric forced grease lubrication
Manual oil lubrication for balance cylinder
Integrated panel (including electric cam and touch screen)
PLC control from an international brand
Contactors and buttons from an international brand
One set of blowing device
Options: Wet clutch, air cushion, light curtain, inverter - equipped motor, slide knockout device, automation device
III. Typical Industrial Application
Automobile manufacturing: integrated stamping of door inner panels, processing of chassis longitudinal beam holes
Construction industry: punching of steel structure connectors, forming of curtain wall keels
Logistics equipment: high-speed punching of shelf support plates, precision stamping of container corner pieces
Technical Parameter:
Specification | MC2-110 | MC2-160 | ||||||
| I | II | I | II | I | II | ||
Nominal Force | kN | 800 | 800 | 110 | 110 | 1600 | 1600 | |
Nominal Stroke | mm | 5 | 3 | 5 | 3 | 6 | 3 | |
Slide Stroke | mm | 160 | 90 | 180 | 110 | 200 | 130 | |
SPM | Fixed | min⁻1 | 55 | 70 | 50 | 60 | 45 | 55 |
Variable (Option) | min⁻1 | 40-70 | 55-90 | 30-60 | 50-80 | 25-50 | 40-65 | |
MAX Die Height | mm | 350 | 350 | 400 | 400 | 450 | 450 | |
Die Height Adjustment | mm | 80 | 80 | 90 | 90 | 100 | 100 | |
Between Slide Center to Frame | mm | 310 | 310 | 350 | 350 | 390 | 390 | |
Bolster Area | mm | 600 x 1600 | 680 x 1800 | 680 x 1800 | 760 x 2040 | 760 x 2040 | ||
Bolster Thickness | mm | 110 | 145 | 130 | 165 | 150 | 185 | |
Slide Area (FB x LR) | mm | 460 x 1200 | 460 x 1200 | 520 x 1360 | 580 x 1500 | 580 x 1500 | ||
Shank Hole (Dia x Depth) | mm | 3-Φ60 x 60 | 3-Φ60 x 60 | 3-Φ60 x 70 | 3-Φ60 x 75 | 3-Φ60 x 75 | ||
Between Columns | mm | 1200 | 1200 | 1450 | 1450 | 1600 | 1600 | |
Main Motor Power | kW | 11 | 11 | 11 | 11 | 15 | 15 | |
Air Cushion (Option) | Eject Force x Stroke x Qty | kN x mm | 40 x 70 x 2 | 60 x 70 x 2 | ||||
Bolster Height | mm | 900 | 935 | 900 | 935 | 950 | 985 | |
Outline Dimension (FB x LR x H) | mm | 1780 x 1780 x 3190 | 1810 x 2060 x 3300 | 2165 x 2220 x 3590 | ||||
Specification | MC2-200 | MC2-250 | MC2-315 | |||||
| I | II | I | II | I | II | ||
Nominal Force | kN | 2000 | 2000 | 2500 | 2500 | 3150 | 3150 | |
Nominal Stroke | mm | 7 | 3 | 7 | 3.5 | 7 | 3.5 | |
Slide Stroke | mm | 250 | 150 | 280 | 170 | 300 | 170 | |
SPM | Fixed | min⁻1 | 35 | 45 | 30 | 40 | 30 | 40 |
Variable (Option) | min⁻1 | 25-45 | 35-55 | 20-40 | 30-45 | 20-40 | 30-40 | |
MAX Die Height | mm | 500 | 500 | 550 | 550 | 550 | 550 | |
Die Height Adjustment | mm | 110 | 110 | 120 | 120 | 120 | 120 | |
Between Slide Center to Frame | mm | 430 | 430 | 470 | 470 | 480 | 480 | |
Bolster Area (FB x LR) | mm | 840 x 2420 | 840 x 2420 | 920 x 2700 | 920 x 2700 | 940 x 2900 | 940 x 2900 | |
Bolster Thickness | mm | 170 | 220 | 180 | 235 | 190 | 255 | |
Slide Area (FB x LR) | mm | 650 x 1900 | 650 x 1900 | 700 x 2100 | 700 x 2100 | 700 x 2100 | 700 x 2100 | |
Shank Hole (Dia x Depth) | mm | 3-Φ60 x 85 | 3-Φ60 x 95 | 3-Φ60 x 95 | 3-Φ60 x 95 | |||
Between Columns | mm | 2020 | 2020 | 2220 | 2220 | 2220 | 2220 | |
Main Motor Power | kW | 18.5 | 18.5 | 22 | 22 | 30 | 30 | |
Air Cushion (Option) | Eject Force x Stroke x Qty | kN x mm | 80 x 80 x 2 | 80 x 80 x 2 | 100 x90 x 2 | |||
Bolster Height | mm | 1000 | 1050 | 1100 | 1155 | 1110 | 1175 | |
Outline Dimension (FB x LR x H) | mm | 2385 x 2680 x 4110 | 2645 x 2980 x 4400 | 2700 x 2980 x 4565 | ||||
IV. FAQ:
Q1: Is the dual-point press suitable for processing small-sized workpieces?
A: The minimum supported mold size is 300×200mm, and the production tasks can be flexibly switched through the quick mold change system.
Q2: Does the equipment require a special foundation?
A: It comes with a standard shock-absorbing base and can be installed on an ordinary industrial floor without additional reinforcement (load requirement ≤5T/㎡).
Q3: Can an automated feeding system be selected?
A: It supports manipulators, roller feeders or IoT online control to achieve 24-hour unmanned production.
