Open Front Press With Rigid Overload Protector And Fixed Bed
This JF21 series crankshaft press machine eatures crush-type mechanical fuse with auto-break under overpressure to protect the main unit, reducing failure rates by 40% compared to uninsured single-point models. High-rigidity welded frame with six-sided guide rails ensures ±0.03mm positioning accuracy, extending die life by 20%. Maintenance costs are only 1/3 of hydraulic models, supporting manual die adjustment and automation module expansion for traditional stamping applications requiring low cost and high stability.
- Information

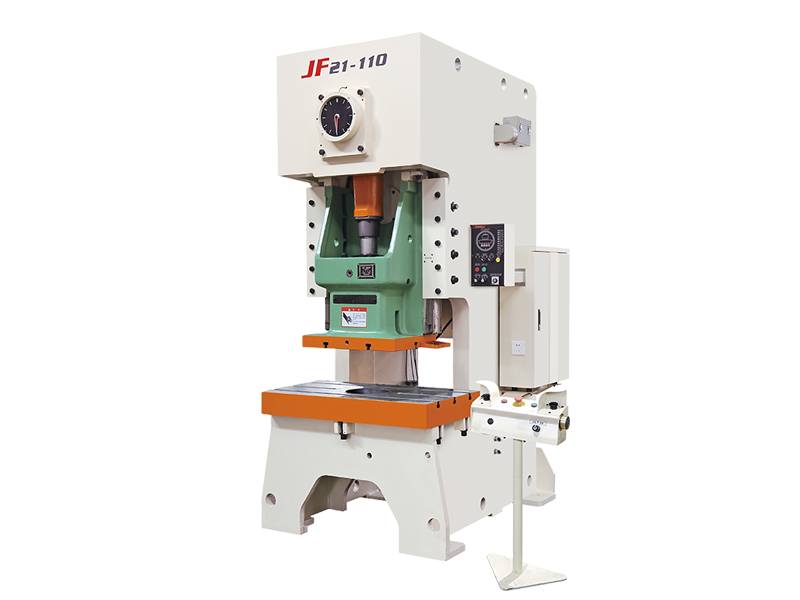

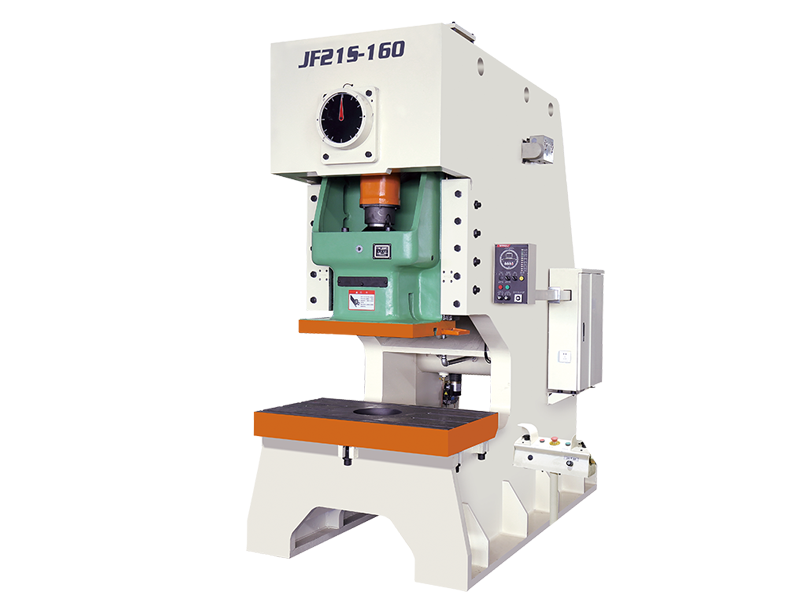

Open Front Press with Rigid Overload Protector——A Reliable Alternative to Traditional Stamping Processes
The crankshaft press machine, specifically our advanced c frame mechanical press, features a crush-type mechanical fuse with an auto-break function under overpressure to protect the main unit. This rigid overload protected press design reduces failure rates by 40% compared to uninsured single-point models. As a high-performance mechanical fixed bed stamping press, its high-rigidity welded frame with six-sided guide rails ensures ±0.03mm positioning accuracy, extending die life by 20%. Our press with shear plate overload protection ensures that maintenance costs remain only 1/3 of hydraulic models, supporting manual die adjustment and automation module expansion for traditional stamping applications requiring low cost and high stability.
I. Core Advantage: Perfect Balance Between Mechanical Rigidity and Cost-Effectiveness
1. Mechanical Rigidity Insurance Ensures Basic Overload Protection
The crush-type safety block design in this rigid overload protected press allows it to break automatically to release energy when pressure exceeds the limit. This press with shear plate overload protection cuts major failure risks and costs significantly less than hydraulic alternatives. For many factory owners, the crankshaft press machine remains the most dependable choice for long-term durability.
2. High Rigidity Body and Precision Guide System
The mechanical fixed bed stamping press features a welded steel structure that undergoes tempering and vibration aging; its rigidity is 30% higher than ordinary models. This c frame mechanical press utilizes a six-sided rectangular guide rail and eight-sided guide slider design. Such precision ensures that this rigid overload protected press reaches a repeat positioning accuracy of ±0.03 mm, extending mold life by 20% on the crankshaft press machine.
3. Low Maintenance Cost and Easy Operation
As a robust mechanical fixed bed stamping press, the simple and reliable structure requires no complicated hydraulic maintenance. Regular lubrication and safety block inspections are all that's needed for this c frame mechanical press. Manual mold adjustment and a foot switch come standard on this press with shear plate overload protection, making it intuitive and suitable for SMEs with focused automation requirements.
4. Diversified Configuration and High Adaptability
This mechanical fixed bed stamping press supports fixed stroke and fixed table designs with a throat depth of 210-420mm. The c frame mechanical press is adaptable to a variety of mold sizes. Optional modules for the crankshaft press machine, such as electric mold adjustment and automatic feeding, allow this rigid overload protected press to meet evolving production needs.
II. Application Areas: A Practical Choice for Traditional Manufacturing
This c frame mechanical press is widely applicable to:
Metal Processing: Basic processes such as sheet metal punching and angle steel forming using a mechanical fixed bed stamping press.
Hardware Manufacturing: Production of standard parts such as locks and brackets with the crankshaft press machine.
Auto Parts: Batch production of simple stamping parts via the press with shear plate overload protection.
III. Technical Parameter
JF21-16 | JF21-25 | JF21-45 | JF21-63 | |||
Nominal Force | kN | 160 | 250 | 450 | 630 | |
Nominal Stroke | mm | 2 | 3 | 4 | 4 | |
Slide Stroke | mm | 60 | 80 | 120 | 120 | |
SPM | Fixed | min⁻1 | 135 | 100 | 80 | 70 |
Variable (Option) | min⁻1 | 120-150 | 80-120 | 40-90 | 35-80 | |
MAX Die Height | mm | 220 | 250 | 270 | 300 | |
Die Height Adjustment | mm | 30 | 50 | 60 | 80 | |
Between Slide Center to Frame | mm | 160 | 210 | 230 | 300 | |
Bolster Area | mm | 400 x 700 | 440 x 810 | 580 x 900 | ||
mm | Φ170 x 20 xΦ150 | Φ180 x 30 xΦ160 | Φ200 x 40 xΦ180 | |||
Bolster Thickness | mm | 65 | 80 | 110 | 110 | |
Bolster Opening (FB x LR) | mm | 200 x 220 | 360 x 250 | 390 x 460 | ||
Slide Area (FB x LR) | mm | 250 x 320 | 250 x 360 | 340 x 410 | 420 x 480 | |
Shank Hole (Dia x Depth) | mm | Φ40 x 60 | Φ40 x 60 | Φ50 x 80 | ||
Between Columns | mm | 450 | 450 | 550 | 560 | |
Main Motor Power | kW | 3 | 3 | 5.5 | 5.5 | |
Outline Dimension (FB x LR x H) | mm | 1500 x 1040 x 2000 | 1300 x 1025 x 2150 | 1390 x 1125 x 2320 | 1580 x 1205 x 2580 | |
Specification | JF21-80 | JF21-110 | JF21-125 | JF21-160B | JF21-200B | ||
Nominal Force | kN | 800 | 1100 | 1250 | 1600 | 2000 | |
Nominal Stroke | mm | 5 | 6 | 6 | 6 | 6 | |
Slide Stroke | mm | 140 | 160 | 160 | 160 | 500 | |
SPM | Fixed | min⁻1 | 60 | 50 | 50 | 45 | 40 |
Variable (Option) | min⁻1 | 50-70 | 30-60 | 30-60 | 25-50 | 25-50 | |
MAX Die Height | mm | 320 | 350 | 350 | 350 | 450 | |
Die Height Adjustment | mm | 80 | 80 | 80 | 110 | 110 | |
Between Slide Center to Frame | mm | 300 | 350 | 350 | 380 | 390 | |
Bolster Area (FB x LR) | mm | 580 x 1000 | 680 x 1150 | 680 x 1150 | 740 x 1300 | 760 x 1400 | |
Bolster Opening (up dia. x depth x low dia.) | mm | Φ200 x 40 xΦ180 | Φ260 x 50 xΦ220 | Φ260 x 50 xΦ220 | Φ300 x 50 xΦ260 | Φ300 x 50 xΦ260 | |
Bolster Thickness | mm | 120 | 140 | 140 | 150 | 160 | |
Bolster Opening (FB x LR) | mm | 390 x 520 | 420 x 540 | 420 x 540 | 480 x 600 | 480 x 600 | |
Slide Area (FB x LR) | mm | 420 x 560 | 500 x 650 | 540 x 680 | 580 x 770 | 600 x 800 | |
mm | Φ50 x 80 | Φ60 x 80 | Φ60 x 80 | Φ65 x 90 | Φ65 x 90 | ||
Between Columns | mm | 640 | 760 | 760 | 850 | 870 | |
Main Motor Power | kW | 7.5 | 11 | 11 | 15 | 18.5 | |
Outline Dimension (FB x LR x H) | mm | 1640 x 1290 x 2800 | 1850 x 1450 x 3060 | 1850 x 1490 x 3060 | 2230 x 1630 x 3210 | 2230 x 1650 x 3520 | |
IV. FAQ
Q1: Does the rigid insurance device need replacement?
A1: Yes. The safety block must be replaced after crushing, but costs are low (about 1/5 of hydraulic systems), ideal for budget-sensitive users.
Q2: Are rigid insurance models more durable than open single-point presses?
A2: Yes. Rigid insurance protects core components, reducing long-term wear from overload and extending equipment lifespan by 15%.
Q3: Can this equipment be upgraded for automated production lines?
A3: Yes. Optional automatic feeding axis and safety light curtain enable semi-automated production via PLC system.
Q4: What is the maintenance frequency?
A4: Routine maintenance involves lubricating guide rails and inspecting safety blocks, taking ~2 hours monthly with lower costs than similar models.
