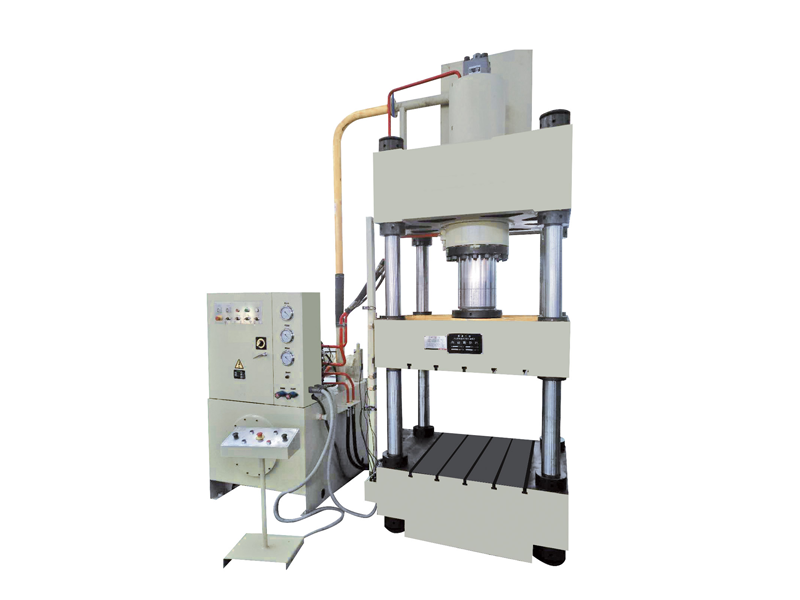

4-Column Frame Hydraulic Press

The 4-Column Frame Hydraulic Press, a reliable four column hydraulic press, features a computer-optimized three-beam structure—simple, economical, practical. As a premium four column hydraulic press machine, it uses a cartridge valve hydraulic system for reliable operation, long life, and minimal leaks. With an independent electrical control system, it’s easy to maintain. Button-controlled, it offers adjustment and semi-automatic modes, plus fixed-stroke/pressure processes with pressure maintaining delay. Slider pressure and stroke are adjustable, making this four column hydraulic press and four column hydraulic press machine ideal for diverse forming tasks.

Information

H1: YL32G Four-Column Hydraulic Press – A Top-Tier Four Column Hydraulic Press for Industrial Forming

In automotive parts manufacturing, hardware forming, and plastic molding, the YL32G Four-Column Hydraulic Press shines as a 4 column press that balances efficiency and practicality. As a leading four column hydraulic press machine, it merges optimized structure, advanced hydraulics, and user-friendly controls, making it ideal for workshops needing consistent results in pressing, bending, and shaping—rivaling the reliability of any 4 post hydraulic press.

H2: Computer-Optimized Structure – A Hallmark of This Four Column Hydraulic Press

H3: Three-Beam Four-Column Design for Durability

The YL32G Four-Column Hydraulic Press features a computer-optimized structure with a three-beam four-column layout—simple, economical, and practical. This design, common in top 4 column press models, distributes force evenly, ensuring stability even under 500-ton pressure. The rigid frame minimizes deformation, extending lifespan—key for a four column hydraulic press machine handling heavy-duty tasks, matching the robustness of a 4 post hydraulic press.

H2: Advanced Hydraulics – Efficiency in This Four Column Hydraulic Press

H3: Cartridge Valve System for Smooth Operation

Equipped with a cartridge valve integrated hydraulic system, this 4 column press reduces impact and leaks by simplifying pipelines. This boosts reliability, lowers maintenance, and ensures uniform forming—whether handling thin sheets or thick workpieces. It’s a versatile four column hydraulic press machine, performing as reliably as any premium 4 post hydraulic press in diverse production lines.

H2: Independent Electrical Control – User-Friendly for This Four Column Hydraulic Press

H3: Reliable System for Easy Maintenance

The YL32G Four-Column Hydraulic Press has an independent electrical control system, operating reliably with intuitive feedback. This simplifies troubleshooting, a plus for any 4 column press, and ensures easy part replacement—reducing downtime, a key benefit of this four column hydraulic press machine. Its design rivals the user-friendliness of a high-end 4 post hydraulic press.

H2: Flexible Modes – A Standout Trait of This 4 Column Press

H3: Centralized Controls for Versatile Use

Controlled via centralized buttons, this four column hydraulic press offers adjustment and semi-automatic modes. Adjustment mode suits custom tasks, while semi-automatic streamlines mass production—making it a flexible four column hydraulic press machine. This adaptability mirrors the versatility of a top 4 post hydraulic press, handling both prototyping and bulk forming.

H3: Customizable Processes for Precision

Through the panel, users select fixed-stroke or fixed-pressure forming, with pressure-holding delay. The slider’s pressure, rapid/slow stroke ranges adjust to needs—critical for a 4 column press handling varied materials. This customization cements its role as a four column hydraulic press machine that adapts to any forming challenge, on par with a premium 4 post hydraulic press.

H2：Technical Parameters

Specification			YL32G-100	YL32G-200	YL32G-315	YL32G-400	YL32G-500	YL32G-630
Nominal Force		kN	1000	2000	3150	4000	5000	6300
Return Force		kN	135	240	305	350	580	650
Ejecting Force		kN	190	400	630	630	1000	1000
Pressure Hydraulic Sytem		Mpa	26	25	25	25	25.5	25.5
Slide Stroke		mm	500	710	800	800	900	900
Ejecting Stroke		mm	200	250	300	300	350	350
Max. Opening Height		mm	800	1120	1250	1250	1500	1500
Slide Speed	Idel Stroke	mm/s	120	220	220	180	210	180
	Pressing	mm/s	7-15	8-19	7-15	5-12	7-18	7-15
	Returning	mm/s	120	145	145	130	155	140
Cushing Speed	Knockout	mm/s	75	95	75	75	95	95
Cushing Speed	Return	mm/s	140	155	145	145	155	155
Bolster	L-R	Mm	690	1000	1260	1250	1400	1600
Bolster	F-B	mm	630	940	1160	1250	1400	1600
Overall Dimension	L-R	mm	2550	3100	3500	3600	3800	4100
	F-B	mm	1450	1400	1600	1600	2400	2400
	Height Above Floor	mm	3250	3800	4600	4900	5150	5500
	Height Blow the Ground Level	mm	0	450	900	900	850	1100
Between Bolster & Floor		mm	830	500	650	720	750	650
Main Motor Power		kW	7.5	22	22	22	22x2	22x2

Specification			YL32-500B	YL32-630B	YL32-800	YL32-1000	YL32-1250	YL32-1600
Nominal Force		kN	5000	6300	8000	10000	12500	16000
Return Force		kN	810	900	1020	1350	1350	1900
Ejecting Force		kN	1000	1260	1600	2520	2520	3200
Pressure Hydraulic Sytem		Mpa	25	25	25	25	25	25.5
Slide Stroke		mm	900	900	1000	1200	1300	1400
Ejecting Stroke		mm	350	350	350	400	400	400
Max. Opening Height		mm	1500	1500	1600	1700	1800	2000
Slide Speed	Idel Stroke	mm/s	200	200	250	250	250	250
	Pressing	mm/s	9-19	8-18	8-18	8-19	8-19	8-18.5
	Returning	mm/s	110	120	130	150	165	145
Cushing Speed	Knockout	mm/s	95	88	90	90	90	90
Cushing Speed	Return	mm/s	155	140	155	150	145	130
Bolster	L-R	Mm	2200	2500	3000	3500	4000	4500
Bolster	F-B	mm	1600	1800	1800	2000	2200	2500
Overall Dimension	L-R	mm	5200	5600	6200	6800	7500	8000
	F-B	mm	2600	2700	3000	3500	3800	4200
	Height Above Floor	mm	5200	5200	5700	6200	6800	7500
	Height Blow the Ground Level	mm	1050	1150	1350	1500	1700	1900
Between Bolster & Floor		mm	730	700	700	650	650	600
Main Motor Power		kW	22x2	18.5x3	22x3	89	112	135

H2: FAQ (Frequently Asked Questions)

Q1: What materials can this four column hydraulic press handle?

A1: It processes metals (carbon steel, aluminum), plastics, and composites (0.5-50mm thick), performing as well as any 4 post hydraulic press—ideal for automotive parts and hardware, a top four column hydraulic press machine for diverse needs.

Q2: How does this 4 column press compare in maintenance?

A2: Its cartridge valve design extends maintenance to 6-12 months, lower than many four column hydraulic press models. Regular oil checks keep it running—easy upkeep for this four column hydraulic press machine.

Q3: Is it suitable for small workshops?

A3: Yes. This 4 column press is economical, easy to operate, and low-maintenance—perfect for small-scale production, as practical as a compact 4 post hydraulic press.

Q4: Can pressure-holding time be adjusted?

A4: Absolutely. This four column hydraulic press lets users set 0-60 second delays, suiting materials needing longer setting—adding to the flexibility of this four column hydraulic press machine.

YL32G Four-Column Hydraulic Press – A four column hydraulic press that outperforms many 4 column press models. Contact us to get this top four column hydraulic press machine: WeChat/WhatsApp: +86 18317313453
