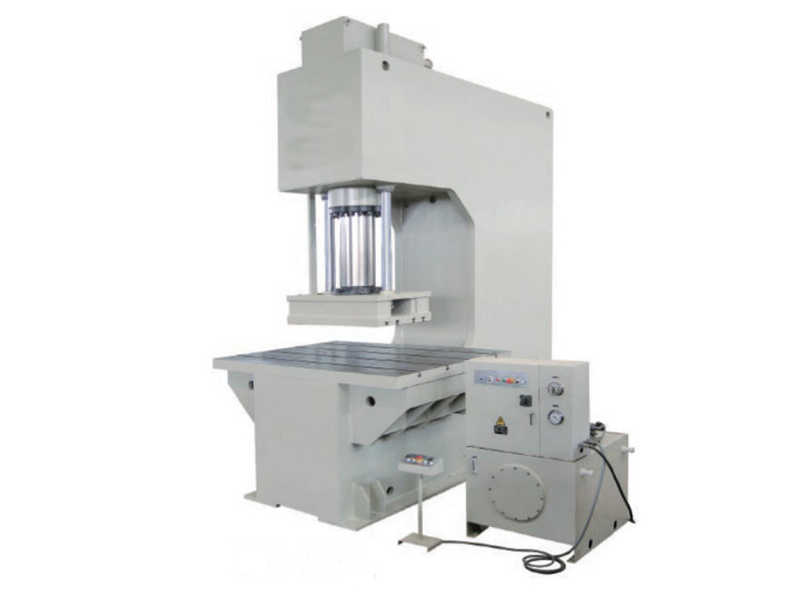

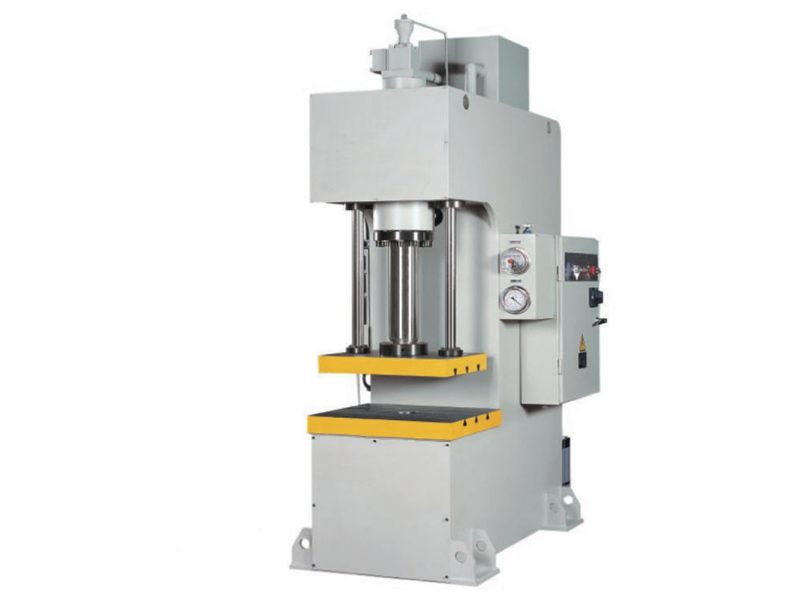

Single Column Straightening Hydraulic Press
The Single Column Straightening Hydraulic Press, a top hydraulic straightening press, features a computer-optimized C-frame—rigid, simple, easy to operate. Welded steel body with tempering ensures durability. Its two-way cartridge valve hydraulic system offers reliability, long life, and minimal leaks, plus pressure pre-release for low impact. With independent electrical control, it’s easy to maintain. Button-controlled, it has adjustment and semi-automatic modes. Slider parameters are adjustable. As a quality straightening press for sale, this hydraulic straightening press excels in metal correction tasks.
- Information
H1: Single Column Straightening Hydraulic Press – A Leading Hydraulic Straightening Press for Metal Correction
In automotive repair, machinery maintenance, and metal processing, the Single Column Straightening Hydraulic Press stands out as a reliable hydraulic straightening press. Its compact design, robust structure, and precise control make it a top choice for straightening bent workpieces, from shafts and rods to metal plates—rivaling the performance of an eitel hydraulic straightening press.
H2: Optimized C-Frame Structure – The Core of This Straightening Press Machine
H3: Computer-Designed for Rigidity and Ease of Use
The Single Column Straightening Hydraulic Press features a computer-optimized C-type single-arm frame—rigid, simple, and easy to operate. This design provides unobstructed access to the work area, simplifying workpiece loading and alignment—a key advantage of this straightening press machine. The frame, made of welded steel plates and tempered to relieve stress, ensures minimal deformation even under high pressure, matching the durability of premium hydraulic straightening press models.
H2: Advanced Hydraulic System – Reliability in This Hydraulic Straightening Press
H3: Two-Way Cartridge Valve Integration for Smooth Operation
Equipped with a two-way cartridge valve integrated hydraulic system, this straightening press for sale delivers reliable performance with long service life. The system reduces hydraulic impact and minimizes leak points by streamlining pipelines. A built-in pressure pre-release device further lowers impact, protecting components—traits that make it a durable hydraulic straightening press, comparable to an eitel hydraulic straightening press in stability.
H2: Independent Electrical Control – User-Friendly for This Straightening Press Machine
H3: Intuitive Controls for Easy Maintenance
The Single Column Straightening Hydraulic Press boasts an independent electrical control system, ensuring reliable operation with clear action feedback. This simplifies troubleshooting and repairs, a standout feature for a straightening press machine in busy workshops. The system’s compatibility with standard parts makes replacements easy, reducing downtime—enhancing the value of this straightening press for sale.
H2: Flexible Operation Modes – Versatility of This Hydraulic Straightening Press
H3: Centralized Button Control for Diverse Tasks
Controlled via centralized buttons, the machine offers two operation modes: adjustment and semi-automatic (with fixed-stroke single and fixed-pressure single processes). This flexibility suits both precise calibration and batch straightening, making it a versatile straightening press for sale. As a practical straightening press machine, it adapts to various workpiece sizes and materials with ease.
H3: Adjustable Parameters for Customized Correction
The slider’s working pressure, rapid empty downward stroke, and slow working stroke are all adjustable to match specific straightening needs. This customization ensures optimal results for thin rods or thick plates, solidifying its role as a top hydraulic straightening press—meeting the precision standards of an eitel hydraulic straightening press.
H2: Technical Parameters
YL40-40 | YL40-63 | YL40-80 | YL40-100 | YL40-100A | YL40-160 | |||
Nominal Force | kN | 400 | 630 | 800 | 1000 | 1000 | 1600 | |
Return Force | kN | 80 | 69 | 115 | 135 | 135 | 210 | |
Max. Hydraulic Pressure | kN | 25 | 25 | 25.5 | 25 | 25 | 26 | |
Slide Stroke | mm | 400 | 500 | 500 | 500 | 500 | 560 | |
Throat Depth | mm | 280 | 320 | 320 | 380 | 500 | 400 | |
Max. Opening Height | mm | 600 | 700 | 700 | 700 | 750 | 900 | |
Slide Speed | Idel Stroke | mm/s | 110 | 130 | 130 | 150 | 150 | 150 |
Pressing | mm/s | 9-22 | 6-14 | 8-18 | 7-15 | 7-15 | 7-15 | |
Returning | mm/s | 110 | 125 | 125 | 120 | 120 | 110 | |
Bolster | L-R | Mm | 1100 | 1200 | 1200 | 1400 | 2000 | 1600 |
F-B | mm | 520 | 600 | 600 | 720 | 800 | 720 | |
Slide | L-R | mm | 560 | 620 | 700 | 700 | 700 | 700 |
F-B | mm | 420 | 460 | 500 | 500 | 500 | 500 | |
Between Bolster & Floor | mm | 700 | 750 | 780 | 870 | 900 | 700 | |
Shank Hole | mm | φ120 | φ150 | φ180 | φ200 | φ200 | / | |
Overall Dimension | L-R | mm | 1250 | 1280 | 1350 | 1400 | 2000 | 1600 |
F-B | mm | 1300 | 1450 | 1550 | 1900 | 2250 | 2300 | |
Height Above Floor | mm | 2600 | 2900 | 2860 | 2920 | 3020 | 3200 | |
Height Blow the Ground Level | mm | 0 | 0 | 0 | 0 | 0 | 300 | |
Main Motor Power | kW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | |
Specification | YL40-200 | YL40-315A | YL40-315 | YL40-400 | YL40-500 | YL40-630 | ||
Nominal Force | kN | 2000 | 3150 | 3150 | 4000 | 5000 | 6300 | |
Return Force | kN | 240 | 300 | 300 | 350 | 580 | 650 | |
Max. Hydraulic Pressure | kN | 25 | 25 | 25 | 25 | 25 | 26 | |
Slide Stroke | mm | 710 | 800 | 800 | 800 | 900 | 1100 | |
Throat Depth | mm | 500 | 800 | 1250 | 1250 | 1500 | 1500 | |
Max. Opening Height | mm | 1120 | 1250 | 1250 | 1250 | 1500 | 1800 | |
Slide Speed | Idel Stroke | mm/s | 200 | 200 | 200 | 170 | 200 | 180 |
Pressing | mm/s | 7-18 | 7-15 | 7-15 | 5-12 | 7-15 | 5-12 | |
Returning | mm/s | 140 | 150 | 150 | 130 | 130 | 115 | |
Bolster | L-R | Mm | 1600 | 1800 | 2000 | 2300 | 2500 | 2800 |
F-B | mm | 800 | 1000 | 1200 | 1300 | 1400 | 2000 | |
Slide | L-R | mm | 750 | 1050 | 1150 | 1300 | 1300 | 1500 |
F-B | mm | 600 | 800 | 900 | 900 | 1000 | 1500 | |
Between Bolster & Floor | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
Shank Hole | mm | / | / | / | / | / | / | |
Overall Dimension | L-R | mm | 1600 | 1800 | 2000 | 2300 | 4000 | 4300 |
F-B | mm | 2600 | 3200 | 3800 | 3900 | 4600 | 4600 | |
Height Above Floor | mm | 3800 | 4200 | 4400 | 4700 | 5300 | 6010 | |
Height Blow the Ground Level | mm | 500 | 900 | 1000 | 1100 | 1200 | 1300 | |
Main Motor Power | kW | 18.5 | 22 | 22 | 22 | 18.5x2 | 18.5x2 | |
H2: FAQ (Frequently Asked Questions)
Q1: What workpieces can this hydraulic straightening press handle?
A1: It efficiently straightens metal shafts, rods, plates, and pipes (diameters 10-200mm), performing as reliably as an eitel hydraulic straightening press. Ideal for automotive axles, machine parts, and structural steel.
Q2: Is this straightening press machine easy to operate?
A2: Yes. Its intuitive button controls and clear feedback make it user-friendly—even for operators new to a straightening press for sale. The adjustment mode allows precise setup for unique workpieces.
Q3: How often does this hydraulic straightening press need maintenance?
A3: With its robust design, maintenance intervals are 6-12 months under normal use. Regular checks of hydraulic oil and seals keep this straightening press machine running smoothly.
Q4: Can it match the precision of an eitel hydraulic straightening press?
A4: While designed for practicality, its adjustable pressure and stroke ensure correction accuracy within ±0.1mm—meeting industrial standards, making it a cost-effective alternative to an eitel hydraulic straightening press.
Single Column Straightening Hydraulic Press – A reliable hydraulic straightening press and versatile straightening press machine. Contact us to explore this straightening press for sale: WeChat/WhatsApp: +86 18317313453
