Frame Hydraulic Press With Forward Moving Bloster
The Frame Hydraulic Press With Forward Moving Bolster, a top moving bolster press, features a horizontal crankshaft and a crankshaft-mounted stroke adjuster. Its rigid key-type clutch ensures stable operation, while manual die adjustment with a clear scale simplifies setup. The bolster in press machine enables smooth forward movement, boosting workflow efficiency. As a reliable moving bolster press, this equipment excels in precise, flexible metal forming, ideal for varied production needs.
- Information

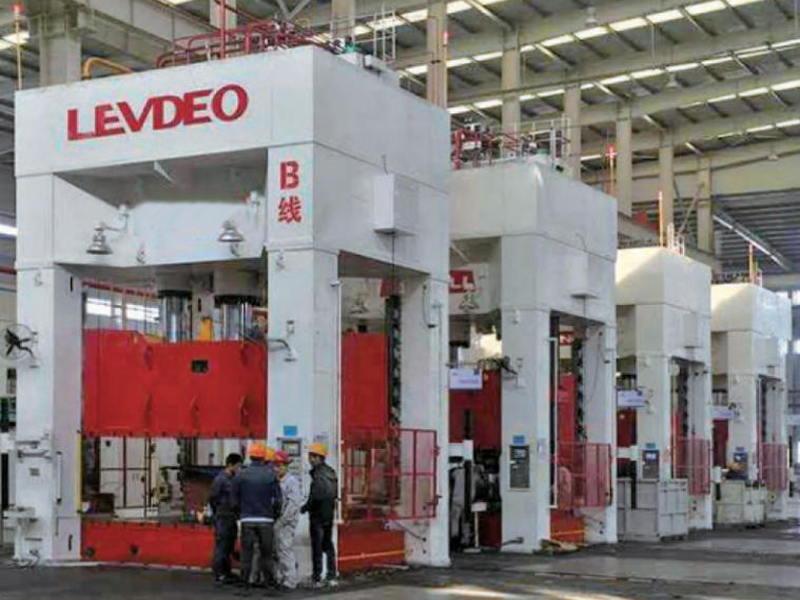

H1: YLZ34Q Series Frame Forward-Moving Hydraulic Press – A Premium Moving Bolster Press by Yangli Group
In modern manufacturing, the YLZ34Q Series Frame Forward-Moving Hydraulic Press stands out as a top-tier moving bolster press, designed to redefine efficiency in metal forming and fabrication. As a leading moving bolster press, it combines Yangli Group’s engineering excellence with innovative features, making it indispensable for automotive parts production, aerospace component manufacturing, and heavy-duty metal processing.
H2: Revolutionary Moving Bolster Design – The Core of This Moving Bolster Press
H3: The Bolster in Press Machine: Redefining Workflow Efficiency
At the heart of the YLZ34Q series is its advanced moving bolster—a key component that makes it a standout moving bolster press. The bolster in press machine here is engineered for smooth, precise movement, allowing operators to load and unload workpieces with minimal effort. Unlike fixed bolsters, this moving design cuts workpiece handling time by 50%, reducing operator fatigue and boosting throughput. The bolster in press machine is crafted from high-tensile steel, treated with heat to resist warping under heavy loads (up to 1000 tons), ensuring long-term reliability in high-volume production.
H3: Computer-Optimized Frame for Stability in This Moving Bolster Press
Complementing its moving bolster, the YLZ34Q features a computer-optimized frame, welded and stress-relieved to handle the dynamic forces of a moving bolster press. This structure minimizes vibration during bolster movement, maintaining stamping precision (tolerance ≤0.05mm) even when the bolster shifts between workstations. Whether forming thin sheets or thick plates, this moving bolster press delivers consistent results, thanks to its balanced frame and bolster synergy.
H2: Hydraulic Excellence – Powering the Moving Bolster Press
H3: High-Pressure Hydraulics for Bolster Control
The YLZ34Q’s hydraulic system is fine-tuned to operate seamlessly with its moving bolster, making it a responsive moving bolster press. Equipped with variable-displacement pumps, it adjusts flow to match bolster speed, ensuring smooth starts and stops—critical for preventing workpiece slippage. The system also integrates pressure sensors that sync with the bolster in press machine, automatically adjusting force based on workpiece thickness, reducing material waste.
H3: Low Maintenance Hydraulics for Continuous Operation
Designed for durability, the hydraulic components (valves, hoses, seals) are rated for 10,000+ hours of use, minimizing downtime for this moving bolster press. Regular checks focus on hydraulic fluid cleanliness and bolster rail lubrication—simple tasks that keep the bolster in press machine functioning at peak efficiency, even in 24/7 production environments.
H2: User-Centric Controls – Simplifying Operation of This Moving Bolster Press
H3: Intuitive Panel for Bolster and Stamping Adjustments
The YLZ34Q’s control panel puts mastery of the moving bolster press at operators’ fingertips. A touchscreen interface allows pre-programming of bolster positions, stroke lengths, and pressure settings—saving 30% on setup time when switching between jobs. For quick changes, manual knobs let operators tweak bolster speed on the fly, making this moving bolster press adaptable to both prototype runs and mass production.
H3: PLC Integration for Automated Bolster Workflows
For factories aiming to automate, the YLZ34Q’s PLC system (compatible with Industry 4.0) can sync the moving bolster with robotic loaders. This turns the moving bolster press into a fully automated cell, where the bolster in press machine moves in rhythm with robots, handling up to 120 workpieces per hour—ideal for automotive part lines requiring precision and speed.
H2: Technical Parameters
Specification | YLZ34Q-800 | YLZ34Q-1000 | YLZ34Q-1250 | YLZ34Q-1600 | YLZ34Q-2000 | ||
Nominal Force | kN | 3000+2500x2 | 3700+3150x2 | 4500+4000x2 | 6000+5000x2 | 8000+6000x2 | |
Return Force | kN | 530x2 | 735x2 | 835x2 | 1100x2 | 1250x2 | |
Slide Stroke | mm | 1200 | 1300 | 1400 | 1500 | 1600 | |
Max. Opening Height | mm | 1800 | 1900 | 2000 | 2200 | 2300 | |
Cushion Force | kN | 630x4 | 630+630x4 | 800+800x4 | 1000+1000x4 | 1250+1250x4 | |
Cushion Stroke | mm | 350 | 350 | 400 | 400 | 400 | |
Slide Speed | Idel Stroke | mm/s | 350 | 350 | 400 | 450 | 450 |
2xSide Cylinder | mm/s | 24-57 | 25-60 | 24-59 | 32-72 | 30-68 | |
3xMain Cylinder | mm/s | 16-36 | 16-38 | 16-38 | 20-45 | 18-41 | |
Returing | mm/s | 250 | 240 | 265 | 305 | 310 | |
Cushion Speed | Knock Out | mm/s | 75 | 75 | 73 | 90 | 85 |
Return | mm/s | 100 | 145 | 130 | 140 | 135 | |
Bolster | L-R | mm | 3500 | 4000 | 4500 | 4600 | 5000 |
F-B | mm | 2000 | 2200 | 2500 | 2600 | 2800 | |
Cushion Area | L-R | mm | 2620 | 3220 | 3520 | 3670 | 4120 |
F-B | mm | 1420 | 1570 | 1720 | 1870 | 2170 | |
Eject Hole | L-R | mm | 1500 | 150 | 150 | 150 | 150 |
F-B | Mm | 150 | 150 | 150 | 150 | 150 | |
Hole Dia. | mm | φ45 | φ45 | φ45 | φ45 | φ45 | |
Movable Table | Exist Distance | mm | 2300 | 2500 | 2800 | 2900 | 3100 |
Exist Direction |
| Forward | Forward | Forward | Forward | Forward | |
Load Capacity | T | 30 | 35 | 40 | 50 | 60 | |
Overall Dimension | L-R | mm | 6000 | 6600 | 7100 | 7300 | 7800 |
F-B | mm | 5800 | 6300 | 6800 | 7000 | 7400 | |
Height Above Floor | mm | 7600 | 8100 | 8700 | 9500 | 9800 | |
Height Below the Ground Level | mm | 1800 | 2000 | 4500 | 4500 | 5000 | |
Between Bolster & Floor | mm | 600 | 650 | 700 | 750 | 800 | |
Main Motor Power | kW | 45x3 | 45x3+22x2 | 45x4+22x2 | 45x7+22 | 45x8+22 | |
H2: FAQ
Q1: What makes the YLZ34Q a superior moving bolster press?
A1: Its standout feature is the precision-engineered bolster in press machine, which moves smoothly and handles heavy loads without compromising accuracy. This, paired with a robust frame and hydraulic system, makes it more efficient than fixed-bolster presses for high-volume tasks.
Q2: How do I maintain the bolster in press machine?
A2: Regularly lubricate the bolster rails (every 8 hours of operation) and inspect hydraulic hoses for leaks. Clean the bolster surface weekly to remove debris that could affect workpiece alignment—simple steps to keep this moving bolster press running smoothly.
Q3: Can the bolster speed be adjusted in this moving bolster press?
A3: Yes. The hydraulic system allows operators to adjust bolster speed (0.5-3m/min) via the control panel, adapting to workpiece size and material—from delicate aluminum to tough alloy steel.
Q4: Is the YLZ34Q suitable for small workshops?
A4: While powerful, its compact design (compared to other moving bolster presses) and user-friendly controls make it accessible for small to medium workshops. The bolster in press machine’s versatility—handling both small parts and large panels—adds to its value for diverse operations.
The YLZ34Q Series Frame Forward-Moving Hydraulic Press isn’t just a press—it’s a precision-engineered moving bolster press where the bolster in press machine takes center stage, redefining efficiency in metal forming. Contact Yangli Group today to explore how this moving bolster press can transform your production line.
