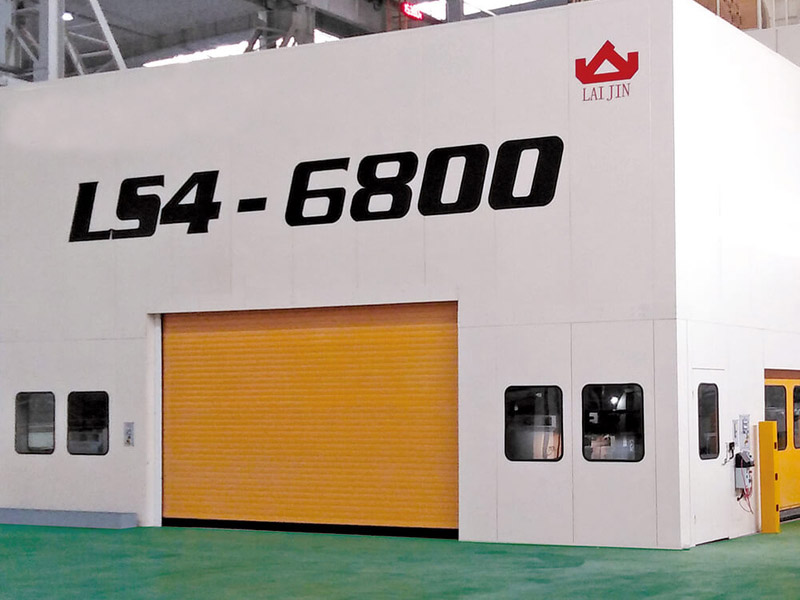

H1: LS4 Series Closed Four-Point Multi-Link Press Machine - High-Performance Precision Stamping Solution

H2: Product Overview: Next-Generation Multi-Link Stamping Power
The LS4 Series represents the pinnacle of modern closed four-point multi-link press machine technology. Engineered as a premium straight side power press for demanding precision stamping applications, this multi-link press machine leverages sophisticated multi-link mechanics, optimized structural design, and advanced control systems to deliver unparalleled accuracy, stability, and efficiency. Ideal for automotive, appliance, and electronics component manufacturing requiring complex forming and high repeatability.

H2: Core Technology & Design Advantages

H3: Advanced Multi-Link Drive System
The multi-link drive system in this multi-link press machine utilizes optimized six-link or eight-link drive mechanisms, meticulously designed using specialized linkage design software. This ensures ideal motion curves for specific forming processes.
Features reverse-direction drive (异向传动), significantly reducing slide side forces for improved part quality and extended die life.
Delivers near-vertical slide motion at bottom dead center (BDC), critical for deep drawing and precision forming.

H3: Robust Construction & Precision Guidance
Key structural components (frame, slide, crown) in the closed four-point frame of this straight side power press undergo rigorous Finite Element Analysis (FEA) optimization for maximum strength, minimal deflection, and optimal weight distribution.
Precision eight-sided rectangular guide rails ensure exceptional slide stability and guiding accuracy, minimizing deflection during operation.
The closed four-point frame design, a defining feature of straight side power press architecture, provides superior rigidity and load distribution compared to two-point presses.

H3: High-Reliability Drive & Control
High-speed stage employs robust double-helical (人字) gears for smooth, quiet, and vibration-free power transmission, even at high speeds.
Features a split pneumatic friction clutch and brake system for precise engagement/disengagement. Optional imported wet clutch/brake units are available for extreme duty cycles or specific application needs.
Dual-loop control via electronic cams and mechanical cams provides ultimate flexibility for complex motion profiles and sequencing automation peripherals.

H3: Essential Protection & Maintenance Systems
Integrated hydraulic overload protection safeguards the multi-link press machine and dies against catastrophic damage due to excessive tonnage.
Comprehensive centralized thin-oil lubrication system with automatic circulation ensures critical components receive consistent, clean lubrication. Optional heating and cooling systems maintain optimal oil viscosity across operating temperatures.

H2: Target Applications & Performance
Ideal For: Deep drawing, complex forming, precision blanking, coining, and high-speed progressive die stamping requiring ultimate accuracy and stability from a multi-link press machine. As a straight side power press, it excels in high-speed automation line integration.
Key Benefits: Enhanced part quality, extended tooling life, reduced noise and vibration, improved energy efficiency, and suitability for high-speed automation lines.

H2: Optional Enhancements for Maximum Flexibility
Press Cushions (气垫): For blank holding and reverse drawing operations.
Rapid Die Change Systems (快速换模装置): Minimize downtime and maximize production efficiency.

H2: Why Choose the LS4 Series Multi-Link Press?
Superior Motion Control: Optimized multi-link drive in this multi-link press machine enables complex forming with reduced thinning and springback.
Unmatched Rigidity & Accuracy: Closed four-point frame of the straight side power press and FEA-optimized construction deliver exceptional stability.
Precision Guidance: Eight-sided rails ensure slide perpendicularity and minimal deflection.
Reliable Power Transmission: Double-helical gears and robust clutch/brake options.
Intelligent Control: Dual electronic/mechanical cam system for ultimate process control.
Enhanced Protection & Uptime: Hydraulic overload and advanced central lubrication.
Future-Proof Flexibility: Range of options like wet clutches, cushions, and quick die change.

H2: Technical Specifications Overview
Drive Mechanism: Six-Link or Eight-Link Multi-Link System
Frame Type: Closed Four-Point (straight side power press architecture)
Slide Guidance: Eight-Sided Rectangular Guide Rails
High-Speed Gearing: Double-Helical (Herringbone) Gears
Clutch/Brake: Split Pneumatic Friction (Standard), Optional Wet Clutch/Brake
Overload Protection: Hydraulic
Lubrication: Centralized Thin-Oil Automatic Circulation (Heating/Cooling Optional)
Control System: Electronic Cam + Mechanical Cam Dual Loop
Key Options: Press Cushion, Rapid Die Change System

H2: Frequently Asked Questions (FAQ)

H3: Q1: What is the main advantage of a multi-link drive over a traditional crankshaft in a closed four-point multi-link press machine?
A1: The multi-link mechanism in this multi-link press machine provides a tailored slide motion curve. It allows slower approach and withdrawal speeds (reducing impact on dies and noise) while enabling a faster, more efficient stroke through the forming zone. Crucially, it achieves near-dwell and near-vertical motion at BDC, significantly reducing slide side forces (异向传动 benefit) for superior deep drawing and forming accuracy compared to crank presses.

H3: Q2: Why is the 'closed four-point' frame structure important for a straight side power press?
A2: The closed four-point frame design of this straight side power press offers significantly higher rigidity and more uniform load distribution across the slide and bed compared to open-back or two-point presses. This minimizes frame deflection under load, ensuring consistent part quality, especially during off-center loading or when using large dies. Combined with FEA optimization, it forms the foundation for the press's stability and precision.

H3: Q3: How does the eight-sided rectangular guide rail system benefit precision stamping?
A3: Eight-sided guide rails provide maximum constraint and contact area for the slide. This superior guidance minimizes tilt, yaw, and deflection during the press stroke, ensuring the slide maintains perfect perpendicularity to the bolster plate. This is critical for achieving tight tolerances, consistent part quality, and prolonging die life in demanding precision stamping applications like deep drawing or fine blanking.

H3: Q4: What are the benefits of double-helical (herringbone) gears?
A4: Double-helical gears eliminate axial thrust forces inherent in single-helical gears. This results in smoother, quieter operation with significantly reduced vibration, even at high press speeds. Reduced vibration translates directly to improved part quality, extended bearing life, and lower maintenance requirements for the drive system of the multi-link press machine.

H3: Q5: What is the purpose of the dual electronic and mechanical cam control?
A5: The dual-loop control system offers maximum flexibility. Electronic cams provide programmable, highly flexible control for sequencing automation (feeders, unloaders, transfer systems) and auxiliary functions. Mechanical cams offer ultra-reliable, hard-wired timing for critical safety interlocks and core press functions (like clutch/brake engagement) in the straight side power press. This combination ensures both sophisticated process control and inherent safety/reliability.

H3: Q6: When would I choose the optional wet clutch/brake?
A6: Imported wet clutch/brake units are ideal for applications involving very high cycles per minute (strokes per minute - SPM), continuous operation, or where minimal maintenance intervals are critical for the multi-link press machine. They operate immersed in oil, providing superior heat dissipation, longer lifespan, consistent torque transmission, and reduced wear compared to dry friction units, especially in high-duty production stamping environments of a straight side power press.
