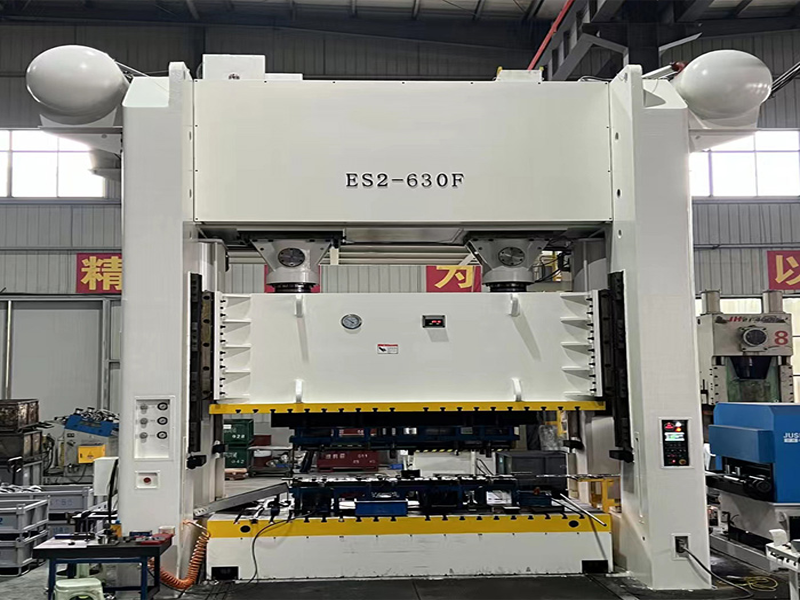

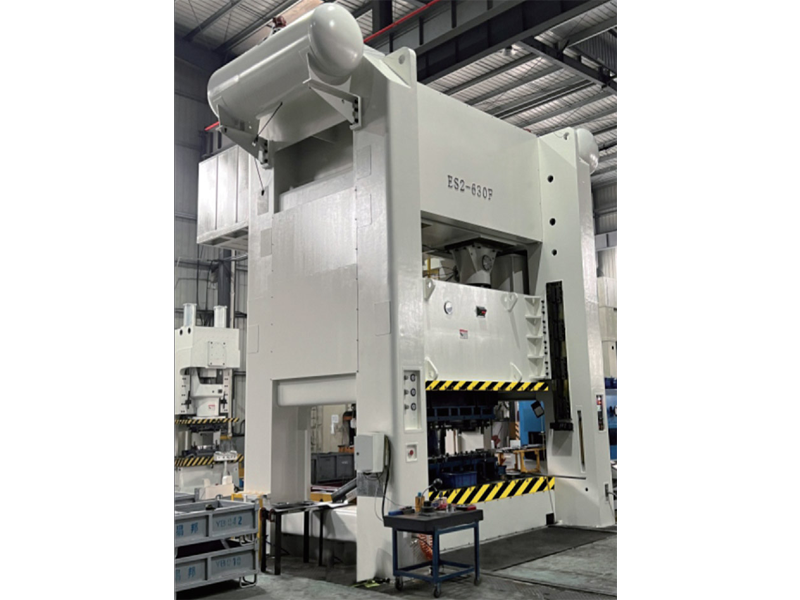

H1: Professional High Rigidity Straight Side Double Point Press with Entire Frame - Precision Stamping & High-Efficiency Production Solution

Need reliable, high-efficiency metal sheet stamping equipment? Our high rigidity straight side double point press (also known as an entire frame double-point press) is engineered for demanding continuous production environments. Combining exceptional rigidity, advanced control, and multiple safety features, it's the ideal choice to boost your output and quality, whether for standard components or specialized tasks like panel press machine applications.

H2: Core Technical Advantages Deliver Exceptional Performance

H3: Solid Foundation: Integral Steel Welded Frame

• Core structure utilizes integral steel plate welding technology, offering industry-leading stiffness and strength to effectively resist deformation – a hallmark of a true high rigidity straight side press.

• The high-rigidity closed frame design ensures extremely stable slide movement, laying a solid foundation for precision stamping and consistent results.

H3: Precise Drive & Safety Assurance

• Pneumatic friction clutch and brake provide rapid response. Combined with imported dual-solenoid valve control, they deliver exceptional operational reliability and safety, contributing to smoother, more controlled operation.

• The hydraulic overload protection device offers real-time monitoring and instantaneous pressure release, effectively safeguarding dies and critical components from accidental damage.

H3: Stable Guidance & Intelligent Lubrication

• Eight-sided guideways on the slide, complemented by guide pillar and bushing structures, deliver unparalleled running precision and resistance to off-center loads, essential for the demanding tolerances of a panel press machine.

• An automatic electric lubrication system ensures optimal lubrication for key moving parts at all times, reducing wear, extending equipment lifespan, and contributing to quieter operation.

H2: Advanced Intelligent Control System

H3: Reliable Brain: International Brand PLC

• Core control powered by an international brand PLC, ensuring stable, reliable operation, precise logic control, and strong data processing capability for your straight side double point press.

H3: Dual-Circuit Precision Control

• Unique electronic cam and mechanical cam dual-circuit control strategy enables fine management of the slide motion path, especially suitable for complex, high-precision stamping processes required in advanced manufacturing.

H2: Flexible Expansion for Diverse Needs
This straight side double point press series offers a wide range of optional accessories for seamless integration into your production line:

• Cushion: For part ejection or blank holding in complex drawing operations, common in panel press machine setups.

• Moving Bolster: Significantly enhances die change efficiency, reducing downtime.

• Quick Die Change System: Further shortens mold setup time for flexible multi-product, small-batch production.

• Wet Clutch: An upgrade option for specific high-load, high-frequency applications.

H2: Why Choose Our High Rigidity Straight Side Double Point Press?

• Superior Rigidity: Integral welded closed frame provides unmatched stability inherent in a high rigidity straight side press.

• Top-Tier Precision: Eight-sided guideways and guide pillars/bushings guarantee consistent stamping.

• Multi-Layer Protection: Pneumatic clutch/brake and hydraulic overload form a robust safety barrier.

• Smart & Reliable: International PLC and dual-cam control enable precise management.

• Efficient & Quiet: Automatic lubrication lowers upkeep costs and contributes to a low noise straight side press operation.

• Flexible Scalability: Rich selection of options meets future production demands.




H2: Press Specification

H2: Frequently Asked Questions (FAQ)

Q1: Which industries are these straight side double point presses primarily used for?
A1: Widely used for precision stamping, drawing, bending, and forming processes in industries such as automotive parts, home appliances, motor stators/rotors, hardware products, electronic communication components, and as a dedicated panel press machine. Particularly suited for applications demanding high precision, stability, and large-volume continuous production.

Q2: What advantages does the "integral steel welded frame" offer over traditional designs?
A2: The integral welded closed frame provides significantly higher stiffness and strength with minimal deformation under load – defining it as a high rigidity straight side press. This structure effectively absorbs impact forces, guarantees slide parallelism and guidance accuracy, markedly improves dimensional consistency of stamped parts (especially critical for flat panels), and extends the service life of both the press and dies.

Q3: What are the benefits of the pneumatic friction clutch/brake with imported dual-solenoid valves?
A3: This combination delivers extremely high response speed and operational reliability. Pneumatic friction ensures smooth power transmission, while the precision control and inherent redundancy of the imported dual-solenoid valves greatly enhance the safety factor of the clutch/brake system. It guarantees the slide stops accurately, even during high-speed continuous operation, ensuring operational safety.

Q4: How does the hydraulic overload protection work, and why is it critical?
A4: This device continuously monitors the pressure exerted on the slide. If pressure exceeds the preset safety threshold (typically due to material issues or die malfunction), the system instantly and automatically releases the pressure. This prevents catastrophic damage to the press's core components (like the crankshaft, connecting rods, or frame) or expensive dies. It is a vital safety barrier protecting your investment in this straight side double point press.

Q5: What is special about the electronic cam and mechanical cam dual-circuit control?
A5: This dual-circuit design combines the strengths of both cam systems. The mechanical cam provides a fundamental, reliable motion curve, while the electronic cam offers high flexibility and programmability. This allows users to finely tune the slide's motion characteristics (such as bottom dead center dwell time or speed profiles) based on process requirements, making it ideal for complex or high-precision stamping operations found in panel press machine applications.

Q6: Which optional accessories are most frequently chosen by customers?
A6: The moving bolster and quick die change system are the most popular options for our straight side double point press. They drastically reduce die changeover times (potentially down to minutes), significantly boosting equipment utilization – especially beneficial for multi-product, small-to-medium batch production. A cushion is essential for complex processes like deep drawing, often used in conjunction with a panel press machine. The overall robust design also contributes to a low noise straight side press environment.

Q7: Is this press suitable for environments requiring lower noise levels?
A7: Yes, absolutely. The combination of the inherently stable high rigidity straight side press structure (reducing vibration), the precision-engineered eight-sided guides and pillar/bushings, the smooth pneumatic clutch/brake engagement, and the efficient automatic lubrication system all contribute to making this a notably low noise straight side press compared to many alternatives. This is a significant advantage for improved workplace ergonomics.
