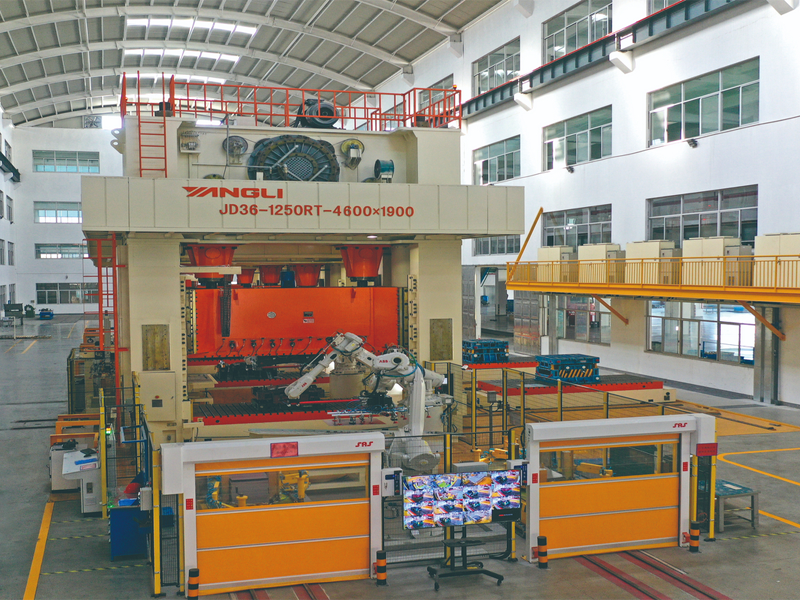

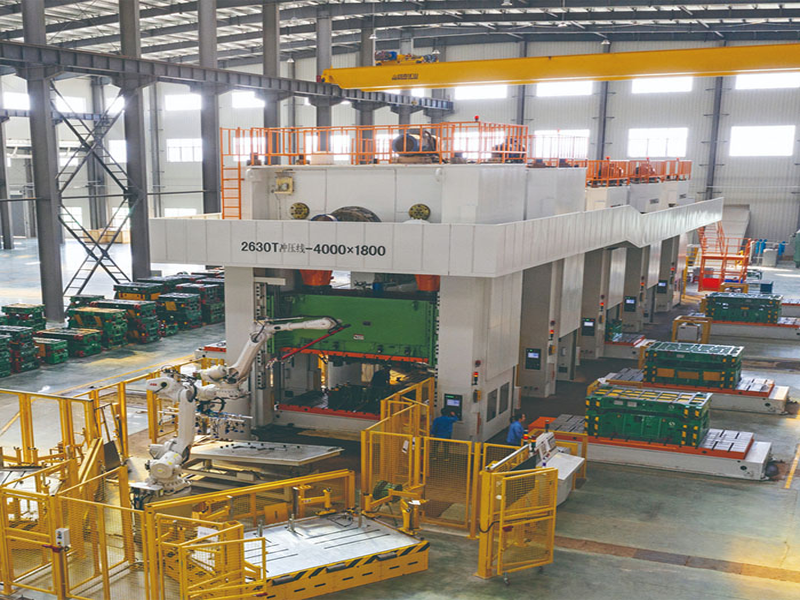

Straight Two Point Press
The J36 series straightside press, also termed a straight sided two point press, excels in precision and durability. Optimized via FEA for critical components, its welded frame with tension bolts ensures superior rigidity. Features like offset transmission minimize slide lateral forces, while eight-face guides and high-strength alloy gears enhance accuracy. Equipped with a pneumatic friction clutch, overload protection, and dual-circuit cam control, it guarantees safety and efficiency. Optional add-ons include a cushion, tonnage monitor, and dampening pad, catering to diverse high-demand applications.
- Information
H1: J36 Series Closed Straightside Two Point Press – High-Efficiency Precision Stamping Equipment
Designed for automotive and heavy manufacturing, the J36 series closed straightside two point press combines dynamic structural reinforcement with intelligent controls, setting new standards for long-workpiece stamping efficiency. This two point straight side mechanical press features the unique bow-shaped beam design and opposite-direction drive, ideal for processing components up to 6 meters in length.
H2: Dynamic Reinforced Design for Two Point Structure
H3: Multi-Physical Field Simulation Optimization
Core load-bearing components undergo ANSYS® multi-physics finite element analysis. The 独创 "bow-shaped beam" welded structure (beam-column-base) with pre-tension rod system enhances torsional rigidity by 35%, eliminating deformation in long workpiece processing. This makes the J36 a premier straight sided two point press for large-part stamping.
H3: Ultra-Low Eccentric Load Transmission System
Opposite-Direction Two-Point Drive: Symmetric reverse gear set design reduces lateral force to just 18% of traditional single-point presses.
Octagonal Right-Angle Micron Guides: Nano-penetration hardening technology (surface hardness HRC62±2) ensures guiding parallelism of 0.02mm/m, critical for this straightside two-point press.
H2: Deep Optimization for Two-Point Stamping Scenarios
H3: Dual-Stage Gear Power Module
High-Speed Stage: Alloy steel herringbone gears (ISO 1328 CL 6) with noise ≤72dB(A).
Low-Speed Stage: Ground hard-tooth-surface spur gears (tooth surface roughness Ra0.6) with 100,000-hour fatigue life.
H3: Triple Active Safety Protection
Millisecond-Level Overload Protection: Piezoresistive sensor response time 0.005s (accuracy ±2.5%).
Dual Redundancy Safety Valves: SICK® dual solenoid valves (PL d / SIL 2).
Wet Clutch/Brake (Optional): 350℃-resistant composite friction plates for this two point straight side mechanical press.
H2: Intelligent Control & Production Line Adaptation
H3: Dual-Loop Collaborative Control
Electronic Cam: 0.1° indexing accuracy, supports multi-segment speed curve programming.
Mechanical Cam: Full mechanical backup ensures production continuity during power outages.
Automatic Heavy-Duty Thin Oil Lubrication: Intelligent oil distributor maintains friction pair oil film thickness at ±0.01mm.
H3: Production Line Integration Configuration
Specialized for automotive longitudinal beam/door frame processing:
Three-stage air cushion (ejection force 2000kN)
CNC moving worktable (positioning accuracy ±0.15mm)
Dynamic tonnage monitoring system
Hydraulic shock-absorbing platform (vibration amplitude reduced by 85%)
FAQ: Key Questions About Closed Two Point Presses
Q1: How to choose between two-point and four-point presses?
A: The two-point design suits parts ≤6m (e.g., automotive longitudinal beams), while four-point presses are better for multi-station progressive dies requiring high synchronism. This straight sided two point press excels in long-part flexibility.
Q2: What is the mold change time for the moving worktable?
A: Standard hydraulic clamping + roller guides enable mold switching ≤3 minutes (including positioning and locking).
Q3: How is lubrication ensured during continuous stamping?
A: The oil system features constant temperature control (40±5℃), supplying 0.2ml/cm² oil film per stroke for this straightside two point press.
Q4: Can the overload protection self-recover?
A: Automatic reset after hydraulic unloading requires no shutdown, with annual mis-trigger rate <0.1%.
Q5: Does it support automated line integration?
A: Reserved OPC UA/Profinet interfaces are compatible with robotic loading/unloading systems for this two point straight side mechanical press.
J36 Series Closed Straightside Two Point Press – Redefine Large-Part Stamping Efficiency!
