Straight Single Point Press With Entrire Frame

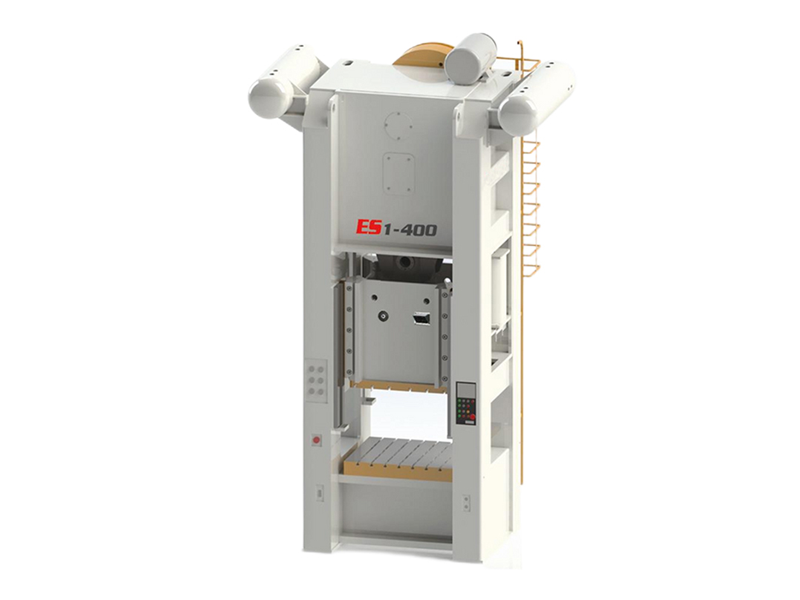

H1: Entire Frame Straight Side Single Point Press: Precision Powerhouse for Demanding Metal Forming

Seeking unparalleled precision, durability, and efficiency in your stamping operations? Our Entire Frame Straight Side Single Point Press is engineered with a robust integral welded steel frame for unmatched stability. This straight side high precision press is the cornerstone of reliable production for medium-duty to heavy-duty applications, including specialized tasks like car body panel press machine operations.

H2: Unmatched Core Engineering for Superior Results

H3: Foundation of Strength: Integral Welded Entire Frame

• The core integral welded steel frame construction delivers exceptional rigidity and strength, minimizing deflection under load – defining this straight side single point press.

• This closed-frame single-point press design ensures optimal force distribution and unparalleled stability for consistent, high-precision stamping critical for straight side high precision presses.

H3: Precision Drive & Essential Safety Systems

• Pneumatic friction clutch and brake ensure rapid, reliable engagement and disengagement.

• Controlled by precise imported dual-solenoid valves, this system guarantees operational safety and responsiveness.

• Hydraulic overload protection instantly safeguards critical components and expensive tooling by releasing pressure if limits are exceeded.

H3: Unwavering Slide Guidance & Automated Care

• Eight-sided guideways on the slide, combined with guide pillar and bushing structures, provide exceptional guidance accuracy and resistance to off-center loads – essential for the tight tolerances of a car body panel press machine.

• An automatic electric lubrication system ensures consistent, optimal lubrication of all critical moving parts, reducing wear, minimizing maintenance needs, and extending press lifespan, contributing to sustained high precision.

H2: Intelligent Control for Modern Manufacturing

H3: Central Command: International Brand PLC

• At its heart lies a reliable international brand PLC control system, ensuring stable operation, precise logic sequencing, and robust data handling capabilities for your entire frame straight side press.

H3: Advanced Motion Control: Dual-Circuit Precision

• Experience superior control with the electronic cam and mechanical cam dual-circuit system. This allows for fine-tuning of slide motion profiles (dwell time, velocity), crucial for complex forming operations requiring the high repeatability expected from straight side high precision presses.

H2: Enhance Your Production Flexibility (Optional Accessories)
Tailor your entire frame straight side single point press to your exact needs with key options:

• Cushion: Essential for deep drawing applications, providing blank holder force or part ejection – vital for complex car body panel press machine work.

• Moving Bolster: Dramatically reduces die changeover downtime.

• Quick Die Change (QDC) System: Achieve ultra-fast mold swaps for high-mix production environments.

H2: Why Invest in Our Integral Welded Straight Side Single Point Press?

• Exceptional Rigidity & Stability: The integral welded entire frame is the bedrock of precision for any straight side high precision press.

• Superior Accuracy: 8-Sided guides and pillar/bushing structures ensure consistent part quality.

• Robust Safety: Hydraulic overload protection and reliable clutch/brake system protect your investment.

• Intelligent Operation: Advanced PLC and dual-cam control enable sophisticated metal forming.

• Reduced Maintenance: Automated lubrication enhances uptime and lowers TCO.

• Proven Durability: Built with premium components for long service life.

• Production Scalability: Optional accessories like cushions adapt the press for roles as a dedicated car body panel press machine.

H2: Press Parameter:

H2: Frequently Asked Questions (FAQ) - Entire Frame Straight Side Presses

Q1: What are the primary applications for this entire frame straight side single point press?
A1: This integral welded straight side single point press excels in precision metal forming processes including blanking, piercing, bending, shallow drawing, coining, embossing, and as a core car body panel press machine. It's ideal for automotive parts, appliances, electronics, hardware, and fabrication requiring high accuracy.

Q2: Why is the "integral welded steel entire frame" so important for a straight side press?
A2: The integral welded construction provides significantly higher stiffness and structural integrity. This minimizes frame deflection during operation, especially under off-center loads. The result is better part dimensional accuracy, improved tool life, and the enhanced stability essential for a straight side high precision press.

Q3: How does the dual-circuit (electronic & mechanical cam) control benefit my production?
A3: The dual-circuit control system offers reliability and flexibility. The mechanical cam provides inherent dependability, while the electronic cam allows precise programming of slide motion profiles (dwell time, speed curves). This is crucial for complex jobs on a straight side high precision press or car body panel press machine, leading to higher quality and reduced scrap.

Q4: What makes the hydraulic overload protection crucial?
A4: Hydraulic overload protection is a critical die safety feature. It continuously monitors slide force. If limits are exceeded (e.g., double blanking, mis-feed), the system instantly releases pressure. This rapid relief prevents catastrophic damage to the press (crankshaft, frame) or dies, protecting your investment in this entire frame straight side press.

Q5: What are the advantages of a straight side single point press design?
A5: Straight side single point presses like ours offer an excellent balance of power, precision, and accessibility. The entire frame straight side construction provides superior rigidity and guidance accuracy compared to C-frame presses. The single-point drive offers good die area access from three sides, simplifying setup. This makes the straight side single point press highly versatile for precision tasks.

Q6: How do the optional moving bolster and quick die change (QDC) systems benefit automotive panel production?
A6: For a car body panel press machine, efficiency is key. A moving bolster allows offline die setup while production runs. Switching dies becomes a rapid roll-in/roll-out process. A QDC system automates clamping/connections, reducing changeovers to minutes. This drastically boosts utilization of your entire frame straight side press for high-mix JIT automotive production.
